| Model | VQ-GLCP-044UF | VQ-GLCP-016UF | ||||
| Electric parameter | Rated input voltage | 110V/220VAC 50/60HZ | ||||
| Total Power | 44w±5% | 16w±5% | ||||
| Light Source Parameter | Infrared light | Light Source | LED | * | ||
| Specification | 3535SMD | * | ||||
| LED QTY | 28PCS | * | ||||
| Power | 28*1=28W | * | ||||
| Ultraviolet light | Light Source | Fluorescent lamp | Fluorescent lamp | |||
| Specification | T5 | T5 | ||||
| lamp QTY | 2PCS | 2PCS | ||||
| Power | 2*8=16W | 2*8=16W | ||||

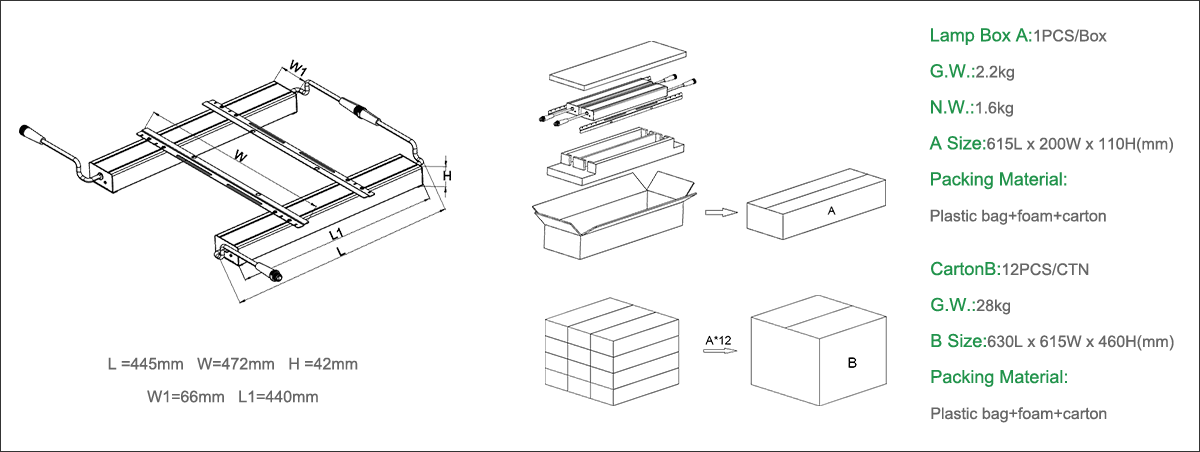

| Net Weight | 1.6kg | 1.6kg | ||||
| Features | FR and UV light | Only ultraviolet UV light | ||||

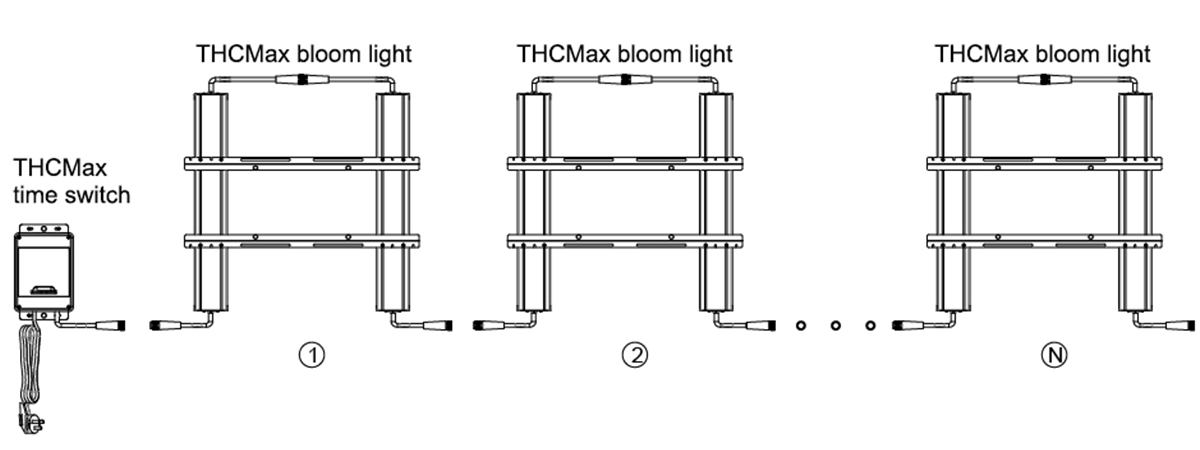

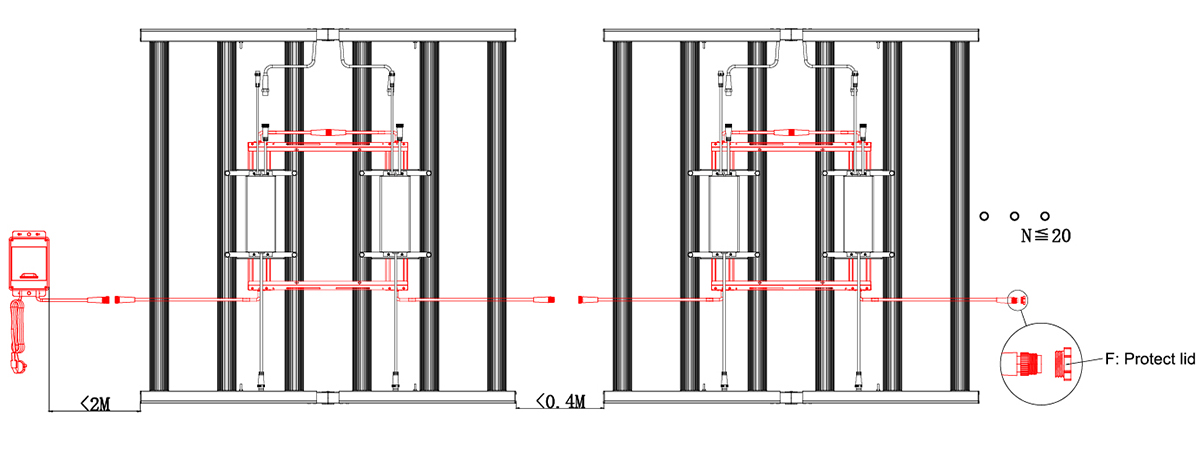

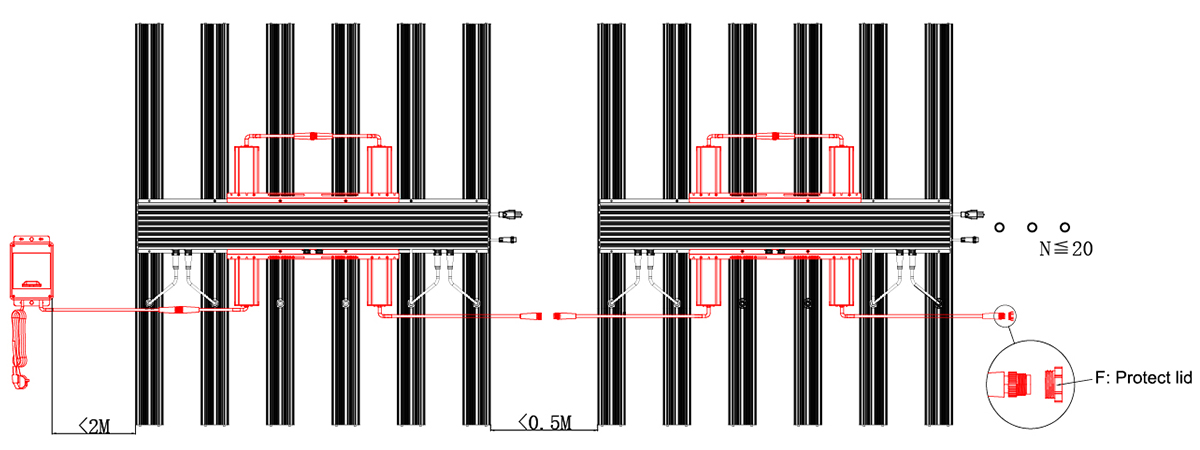

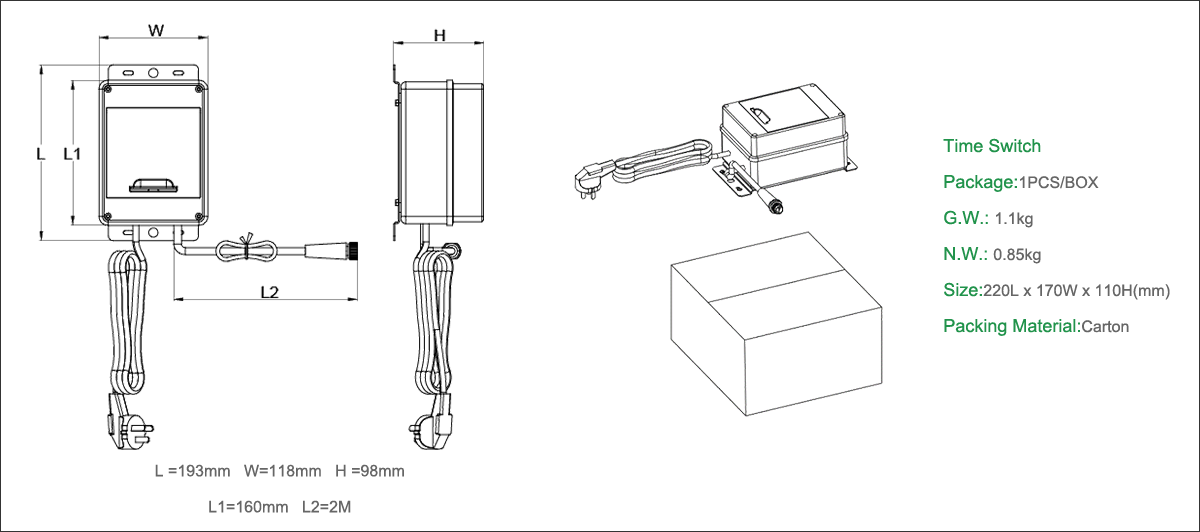

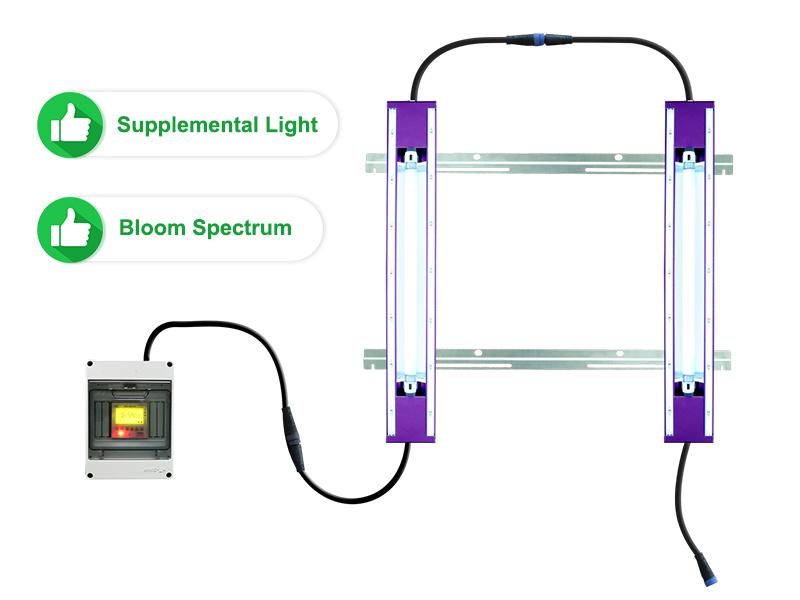

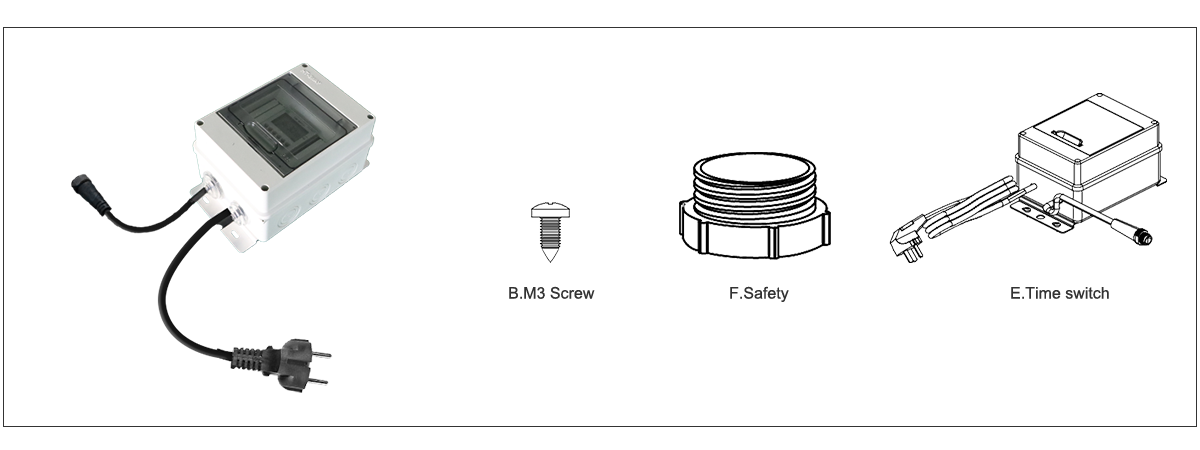

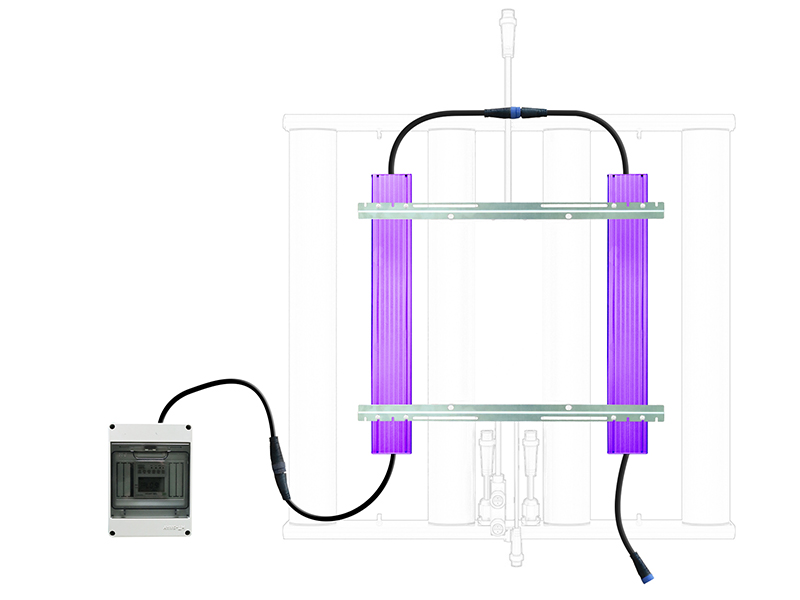

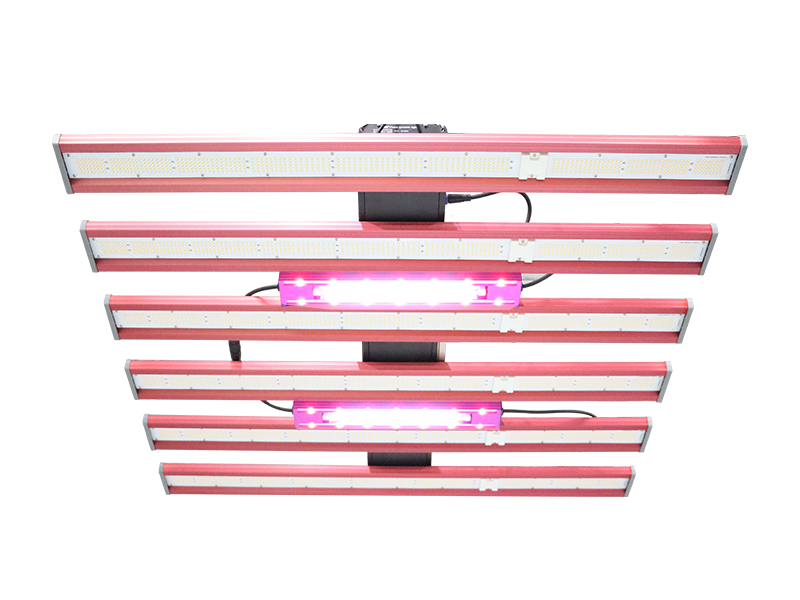

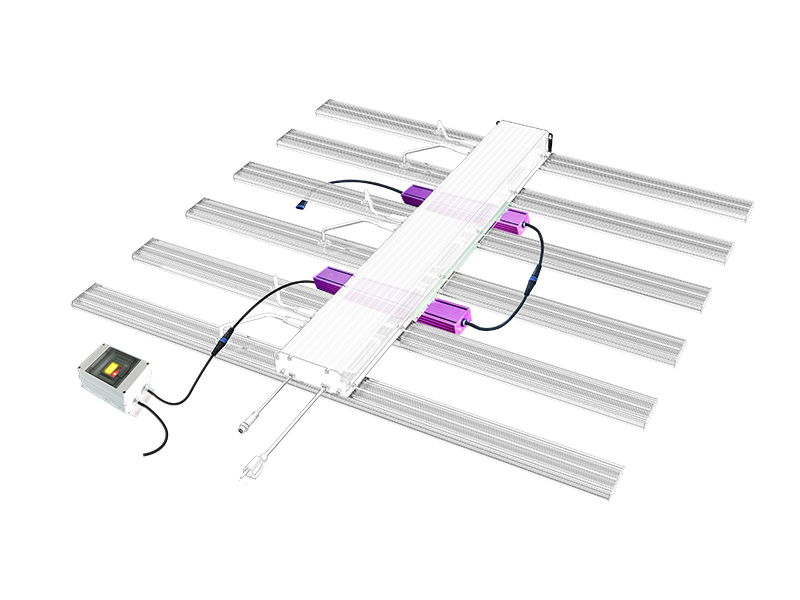

| Manual attention | !Can not be used alone, to be connected with the time switch of THCMax Bloom light, installed onto the main lamps for application. | |||||
1、Reduce fungi,molds and plant pests ,Boost THC content；
2、Useful for the plant fruit coloring and vitamin C；
3、Promote photosynthetic efficiency,short flowering cycle；
4、Improve crop quality,Increase yield up by 20-25%.；
1、Reduce fungi,molds and plant pests ,Boost THC content；
2、Useful for the plant fruit coloring and vitamin C；

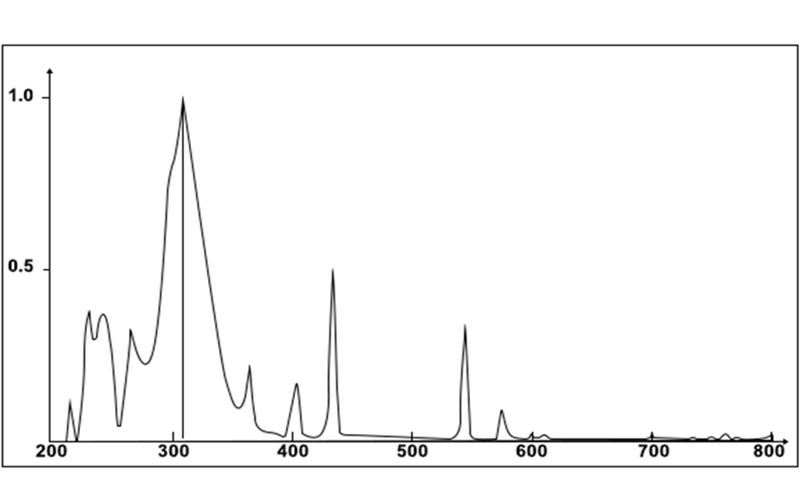

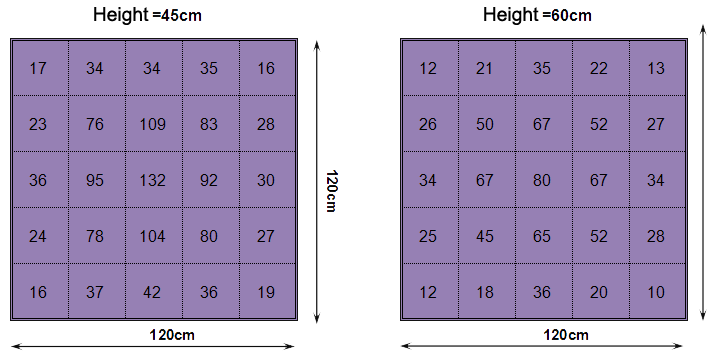

Unit:μW/c㎡
| Timers | 1-16 | |
| 00:00-24:00 | ||
| CHANNELS | CH1(FR) | CH2(UV) |
| Repeat Mode | 1.Mon. 2.Tue. 3.Wed. 4.Thur. 5.Fri. 6.Sat. 7.Sun. 8.Mon.Wed.Fri. 9.Tue.Thur.Sat. 10.Sat.Sun 11.Mon.Tue.Wed 12.Thur.Fri.Sat. 13.Mon.Tue.Wed.Thur.Fri. 14.Mon.Tue.Wed.Thur.Fri.Sat. 15.Mon.Tue.Wed.Thur.Fri.Sat.Sun | |
| Attention: | Different Working timers can work at the same time, make sure the times do not conflict each other, If you do not want any timer on, please set working times ON –:–/OFF –:– | |
| - | ||
| Example 1: | I want the bloom light UV&FR on 18:00-19:00 of Monday-Thursday, and 22:00-23:00 Of Sunday | |
| Solution: | Step 1:Select any 2 Timers from”Timer 1- Timer 16″ , For example, Timer 1 & Timer 2 | |
| Step 2:Set Timer 1 ON 18:00 / OFF 19: 00 ,Repeat Mode as Mode ④.(Both Channels CH1&CH2 ON) | ||
| Step 3:Set Timer 2 ON 22:00 / OFF 23: 00 ,Repeat Mode as Mode ⑪.(Both Channels CH1&CH2 ON) | ||
| Example 2: | I want the bloom light only FR on 17:00-19:00 of Monday-Wednesday, and only UV On 22:00-23:00 Of Saturday | |
| Solution: | Step 1:Select any 2 Timers from”Timer 1- Timer16″ , For example, Timer 3 & Timer 4 | |
| Step 2:Set Timer 3 ON 17:00 / OFF 19: 00 ,Repeat Mode as Mode ⑪.(Channel CH1 ON Only) | ||
Step 3:Set Timer 4 ON 22:00 / OFF 23: 00 ,Repeat Mode as Mode ⑥.(Channel CH2 ON Only) | ||
| Quantity(sets) | 1-50 | 50-100 | 100-500 | >500 |
| Est.Time(days) | 3 | 7 | 21 | To be negotiated |
