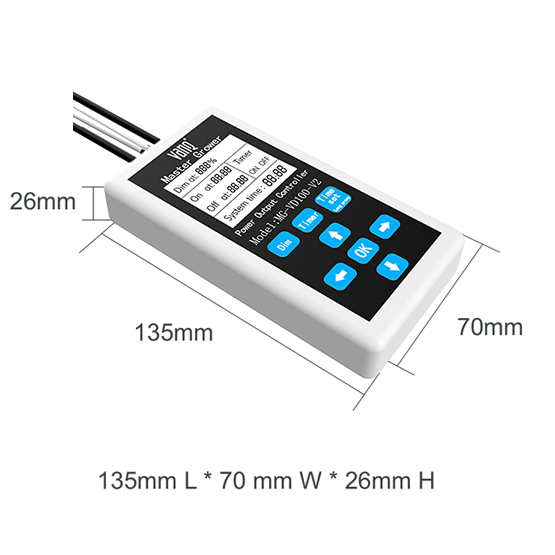

VQ-VD100 Dimming Controller

VQ-VD100 Dimmer is a one-group timing dimming controller with simple functions and direct operation. Equipped with waterproof joints to ensure safe operation. The interface design is simple and easy for users to control.
VQ-VD100 Dimming Controller
VQ-VD100 Dimming Controller

Accurate dimming

11-level system

Memory stability

power-off timing

Touch safety

automatically turn off the screen

Signal precision

high-precision regulation

Timing dimming

multi-level timing

Pattern nature

sunrise and sunset

Product Details

Download Brochure
Products Function
Technical Specifications
Product Connection Diagram
Products Function

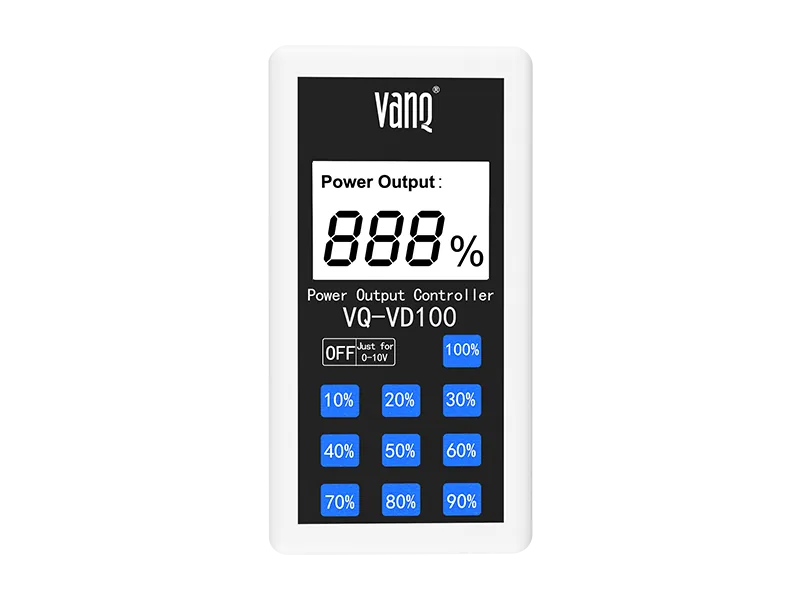

VQ-VD100 Dimming Controller

1.0-10V single-channel dimming, 11 levels in total.

2. The last dimming status will be memorized when the device is powered on, and the system time will still count when the device is powered off.

3. Automatically turn off the screen if there is no operation for a long time to prevent accidental operation.

4. High-precision signal conditioning.

5. Timing dimming.

6. Sunrise and sunset mode. Default 15 minutes sunrise before the timer begins and 15 minutes sunset before the timer ends.


Technical Specifications

Specifications

Power adapter specifications:

optional (EU, UK, US, AU)

Power adapter plug:

5.5*2.5MM

Input voltage:

AC100-240 50/60Hz

Input Current:

Max 1A

Output Accuracy:

±3%

Dimming wire:

waterproof female 2-pin plug

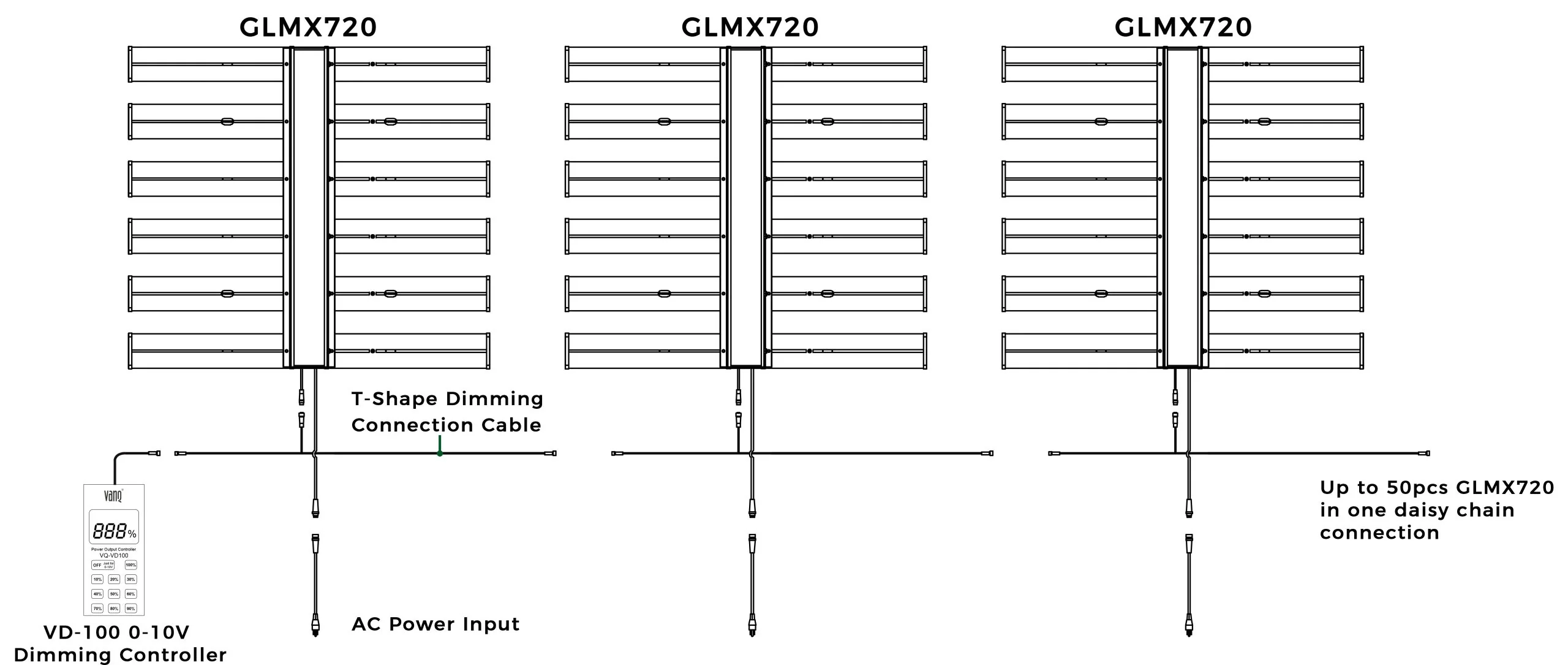

Product Connection Diagram

Daisy Chain Connection

One VQ-VD100 controller is able to control up to 50 units of light fixtures in a daisy chain connection.
