20W tissue culture light supports length customization

20W tissue culture light, specially designed to meet modern planting needs. It's unique cascading feature allows you to connect 20 devices, and the IP65 waterproof rating and plastic casing ensure the device's durability and user safety. Not only that, we provide flexible length customization to meet individual needs. The excellent heat dissipation performance brought by the aluminum alloy structure ensures stable use for a long time and brings excellent planting results.

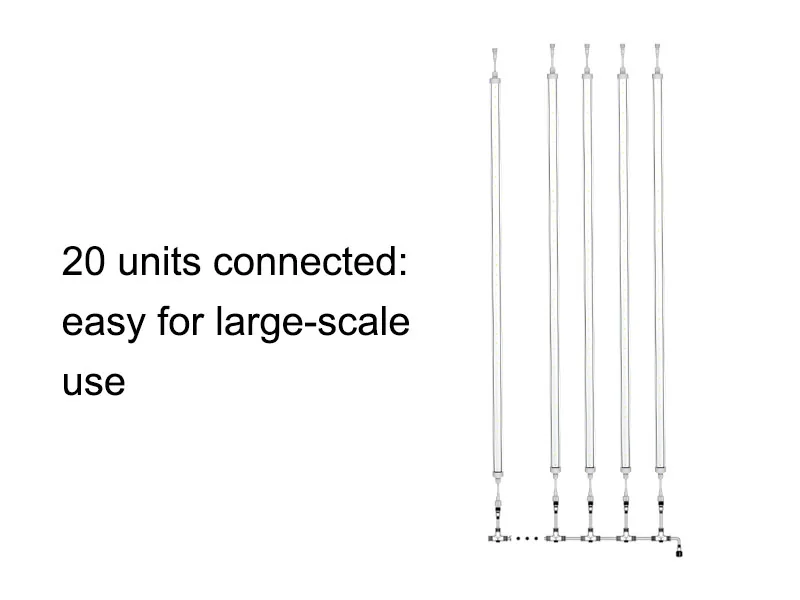

20 units connected

easy for large-scale use

Installation diversity

convenient maintenance and replacement

I65 waterproof design

adaptable to various scenarios

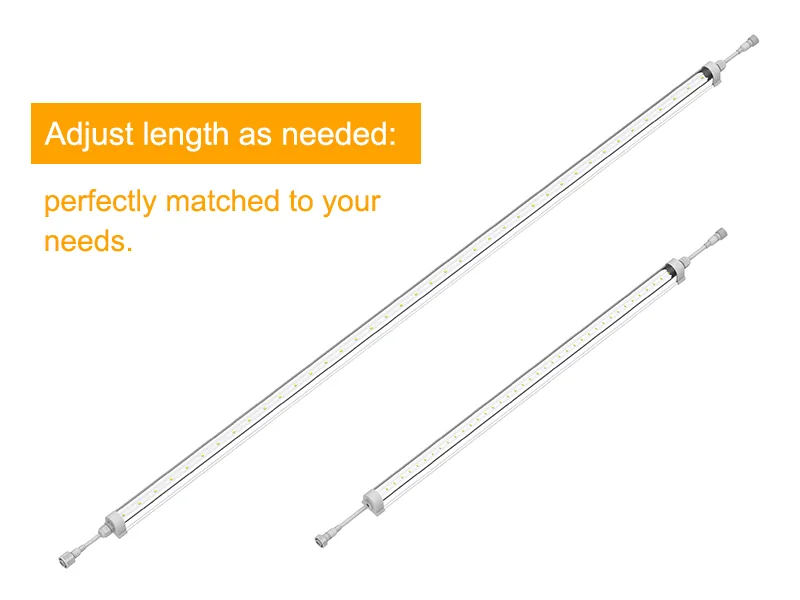

Adjust length as needed

perfectly matched to your needs

Adaptable spectrum

can be designed for tissue culture

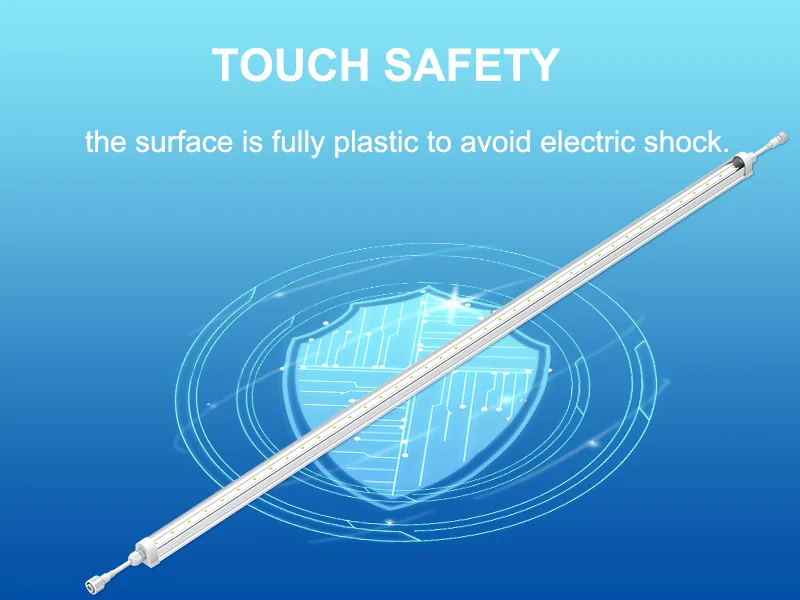

Touch safety

the surface is fully plastic to avoid electric shock

Product Details

Download Brochure
Product Advantage
Specification Parameter
Installation ways
Product Size&List
PPFD&Spectrum
Luminaire Control
Product Advantage


Advantages of 20W tissue culture light


Support large-scale connections:

Supports the connection function of 20 devices, bringing a seamless planting experience to large planting projects and vast spaces.


IP65 waterproof design:

The overall structure of the lamp, including the internal driver box, has been designed to be waterproof, ensuring stable operation in humid, rainy or other changeable environments.


Customized length:

Adjustable length options are available to ensure a perfect fit to your growing space and meet your needs.


Installation and maintenance:

Adopt diversified installation designs to simplify the maintenance process and enable quick replacement, saving you valuable time.


Specification Parameter

Model

VQ-GLT8W20-TN3

VQ-GLT8W20-TN5

Light Source

SMD LED

SMD LED

Light Diodes Brand

Samsung LM301B

Samsung 281B+

Weight

320 g / 0.7 lbs

320 g / 0.7 lbs

Typical PPF

54umol/s

50umol/s

Light Diodes Ratio

white light

white light

Efficacy

2.8 umol/J

2.6umol/J

lnput Voltage

85~265VAC 50/60Hz

85~265VAC 50/60Hz

Spectrum

Tissue Culture Spectrum

Tissue Culture Spectrum

Input Power

20W

20W

Dimensions

47in L x1.25in W x 1.25in D

1195mm L x 32mm W x 32mm D

47in L x1.25in W x 1.25in D

1195mm L x 32mm W x 32mm D

Working Temperature

-20℃~45C|-4℉~113°℉

-20℃~45C|-4℉~113°℉

Light Distribution

120°

120°

Daisy Chain(Max)

10pcs

10pcs

Lifetime

≥25,000 hrs

≥25,000 hrs

Dimming

Not dimmable

Not dimmable

IP Rating

IP65

IP65

Warranty

2 Years

2 Years


Installation ways

Installation ways


1. connecting Through T-Shaped connector in 1 column


Installation through T-Shaped connector method2,The tubes are connected in multicolumns


2. The male and female connectors between the lamps are connected, and no T-type connector is used





Product Size&List

Lamp size



Packing List



Packing Details



Net Weight:7.8kg | 17.2lbs
Packaging:25 pcs/carton
Gross Weight:10kg | 22 lbs
Size:

142cm L x 25.5cm W x 26cm H

56inch L x 10inch W x 10.2inch H

Packaging Material:Plastic + Foam + Carton


PPFD&Spectrum

PPFD & Spectrums



Luminaire Control

Luminaire Control


Up to 20pcs 20W tissue culture light can be powered in a daisy chain connection way.
