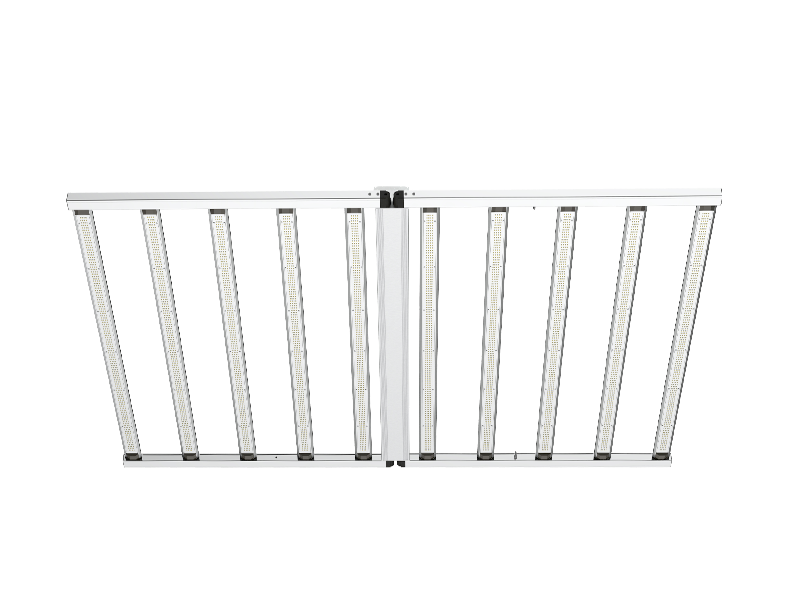

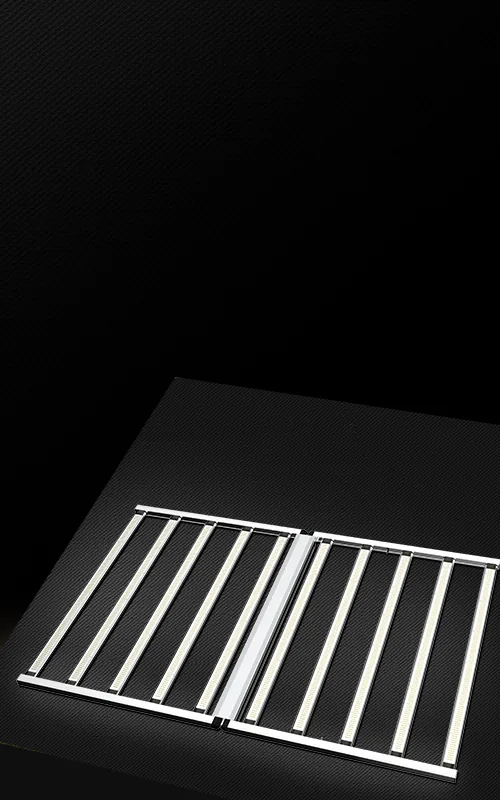

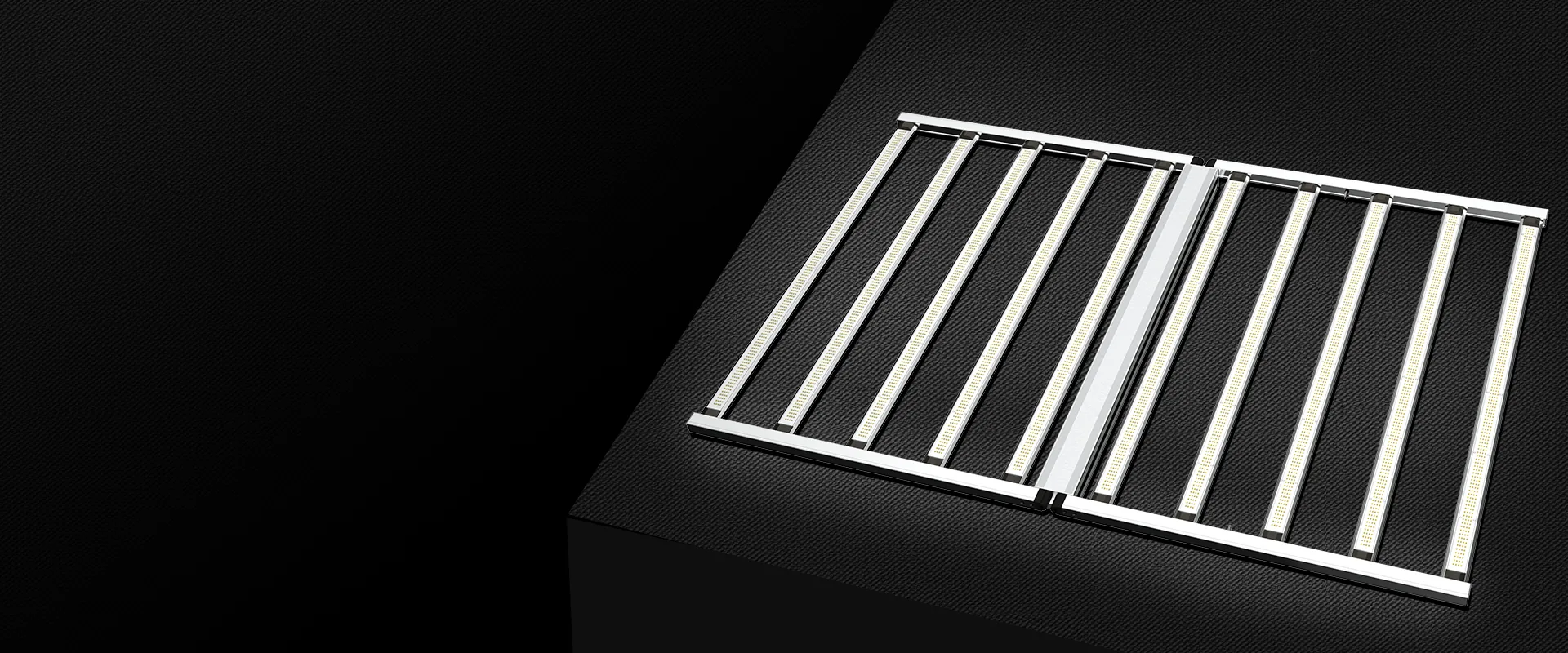

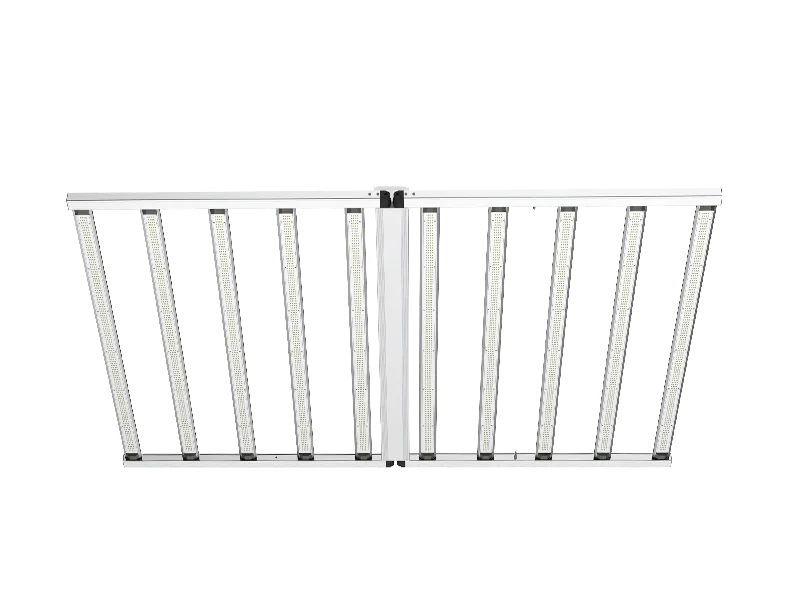

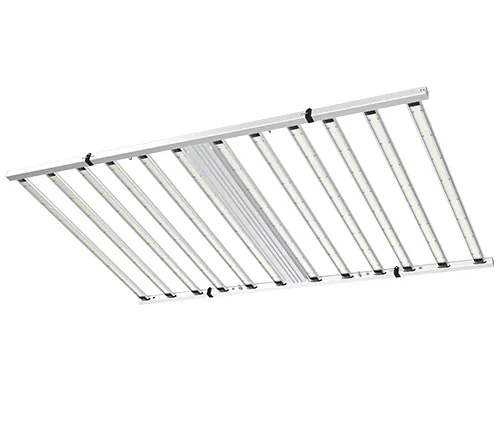

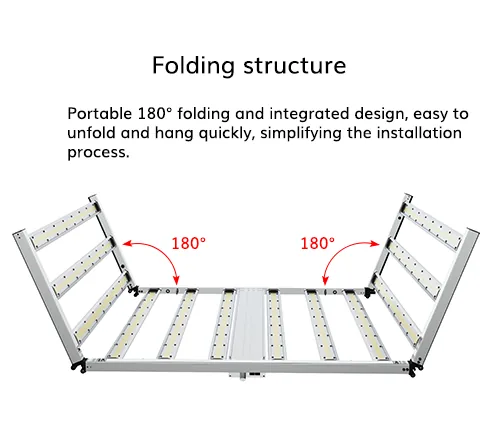

Folding structure:
Portable 180° folding and integrated design, easy to unfold and hang quickly, simplifying the installation process.

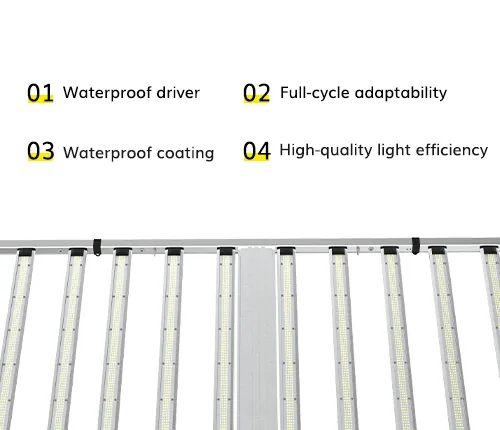

Customized waterproof driver:
UL certified, ensuring the efficiency, stability and safety of the driver.
High light efficiency:
The surface of the light source is specially coated with glue to achieve near-zero light attenuation, and the light efficiency is as high as 2.9umol/J.
Durable LED technology:
High-quality LEDs ensure long-term stable output and reduce the need for light source replacement.
Flexible dimming system:
equipped with independent dimming knob and RJ45 port to achieve stepless dimming to adapt to different growth stages.
Full-cycle lighting:
The intelligent control system meets the full-cycle lighting needs of various crops from growth to flowering.
Cost saving:
The width of the light D reaches 1.8 meters, which can reduce the number of installed lamps, thereby saving installation costs.
Specification Parameter | |
Light Source: | SMD LED |
Input Power: | 1200W |
Input Voltage: | 110~277VAC 50/60Hz |

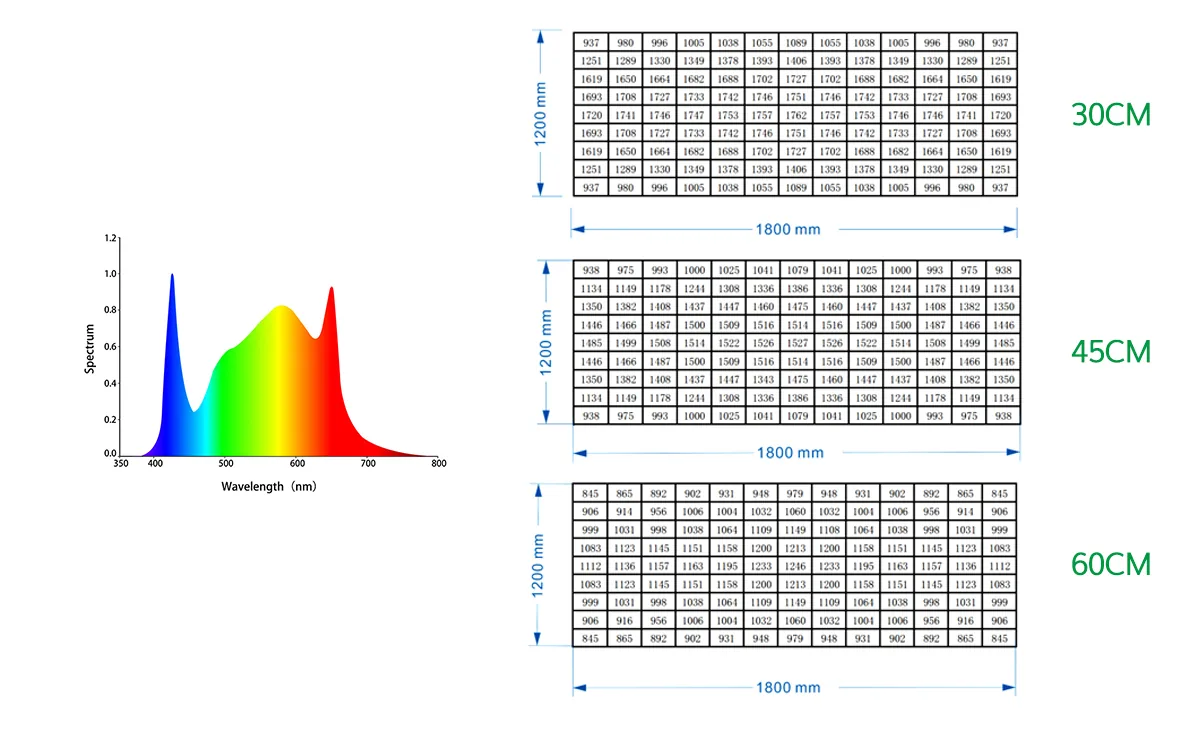

Spectrum: | full spectrum white light + 660nm red light |
Typical PPF: | 3480umol/s |
Efficacy: | 2.9 μmol/J |

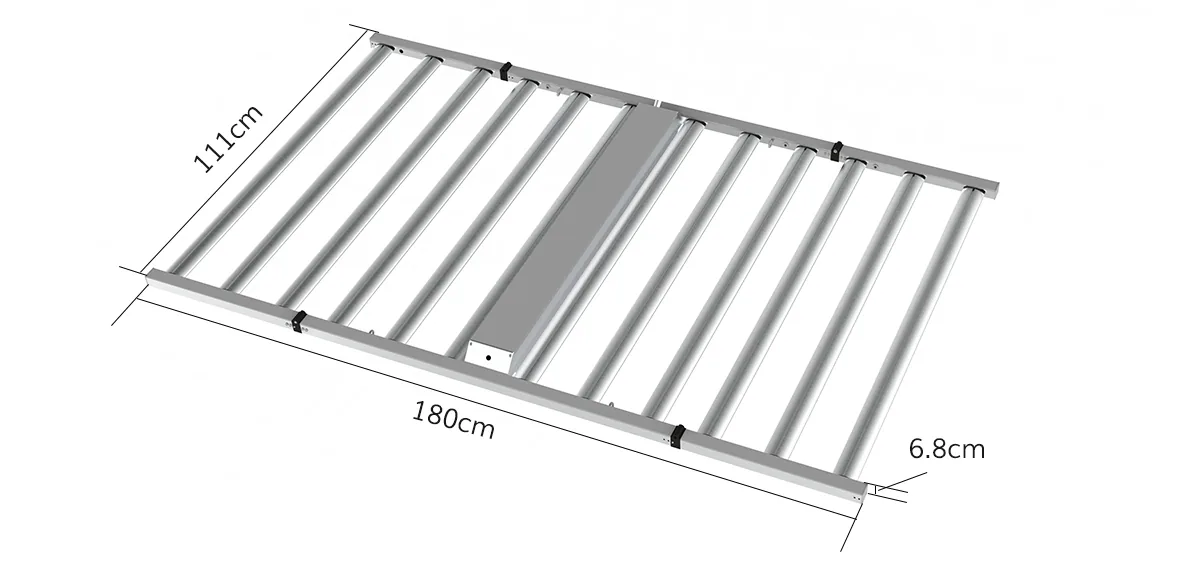

Dimensions: | 180cm L x 111cm W x 6.8cm D, 70.8in L x43.7in W x 2.6in D |
Working temperature: | -20℃~45℃ |-4°F ~ 113°F |
Product weight: | 44 lbs (20 kg) |
Beam angle: | 120° |
IP Rating: | LED Bar IP65 |
Dimming: | 0-10V PWM resistor three-in-one dimming |
Lifetime: | ≥50,000 hrs |
Warranty: | 3 years standard |

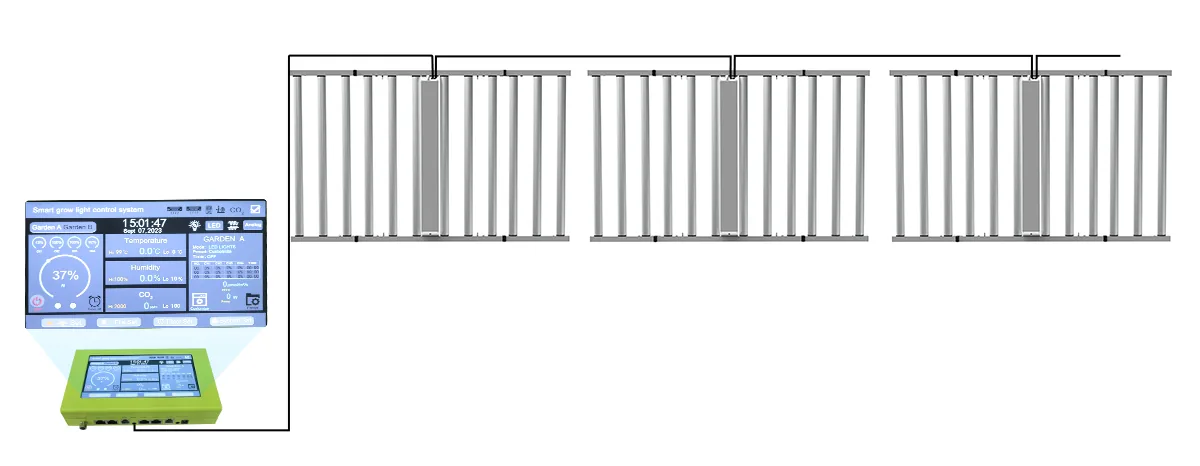

Combined with a wired master controller (VQ-MVG4B2) or other available controllers for external control, this controller is fully functional and supports sunrise and sunset modes, temperature and humidity monitoring, two-group four-channel dimming and other functions.
Full Spectrum for VEG & FLOWER：The tailored-made full spectrum is suitable for the whole growth of indoor plants. Boost vegetative growth and flowering, optimize the quality of yield.
PRODUCT PROJECT ENQUIRY
Share your application and purchasing requirements. VANQ can review product configuration, quantity, compatibility and project details before quotation.
