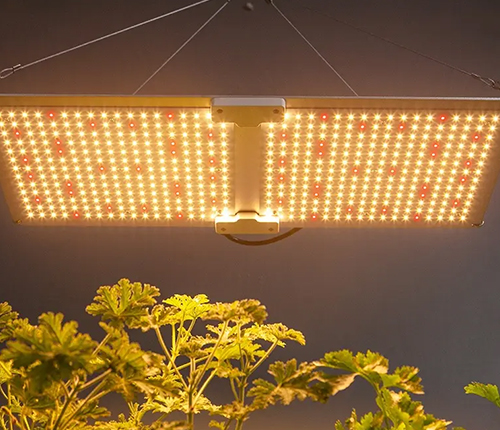

Board Design 200W LED Grow Light

Matrix200 Series LEDs are the ideal grow lights for home grower & hydroponic store, which is specially designed for tent grow.

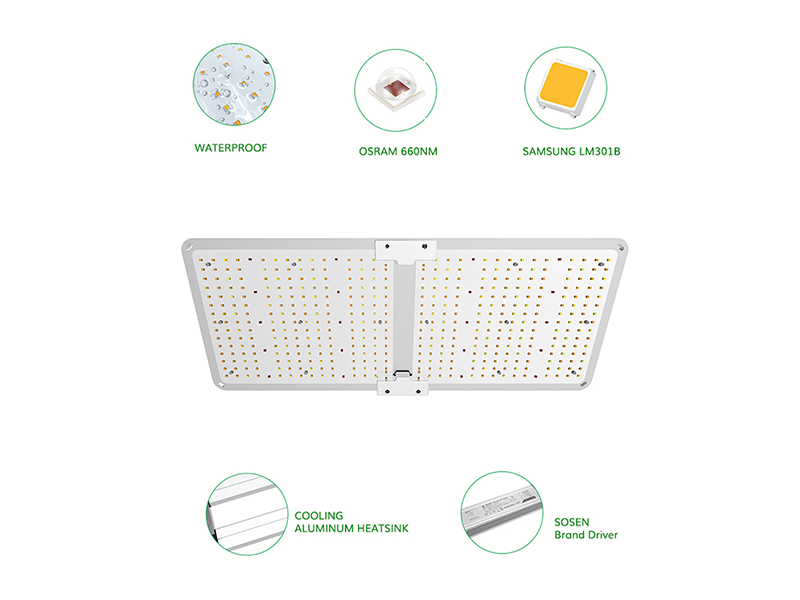

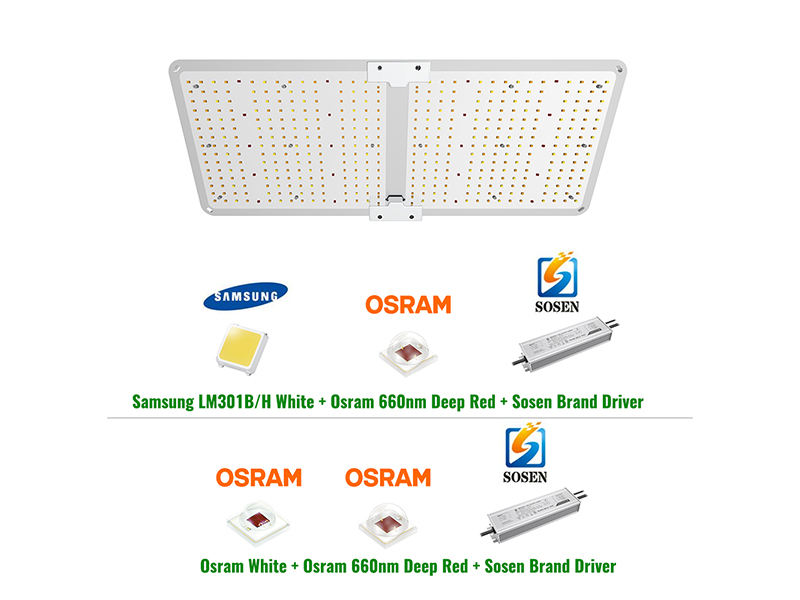

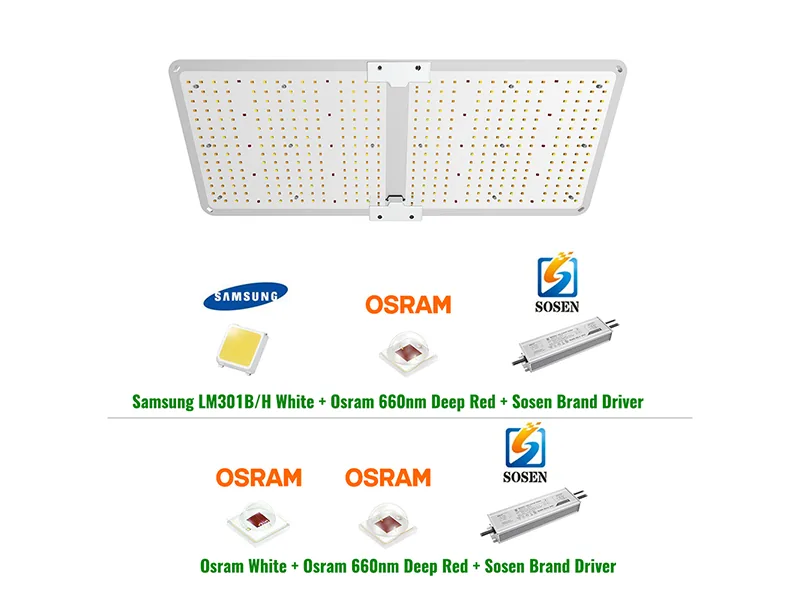

Samsung lm301B

Original Top Bin White

Osram 660nm

Most Efficient Deep Red

Sosen Driver

UL listed Ensure Safety

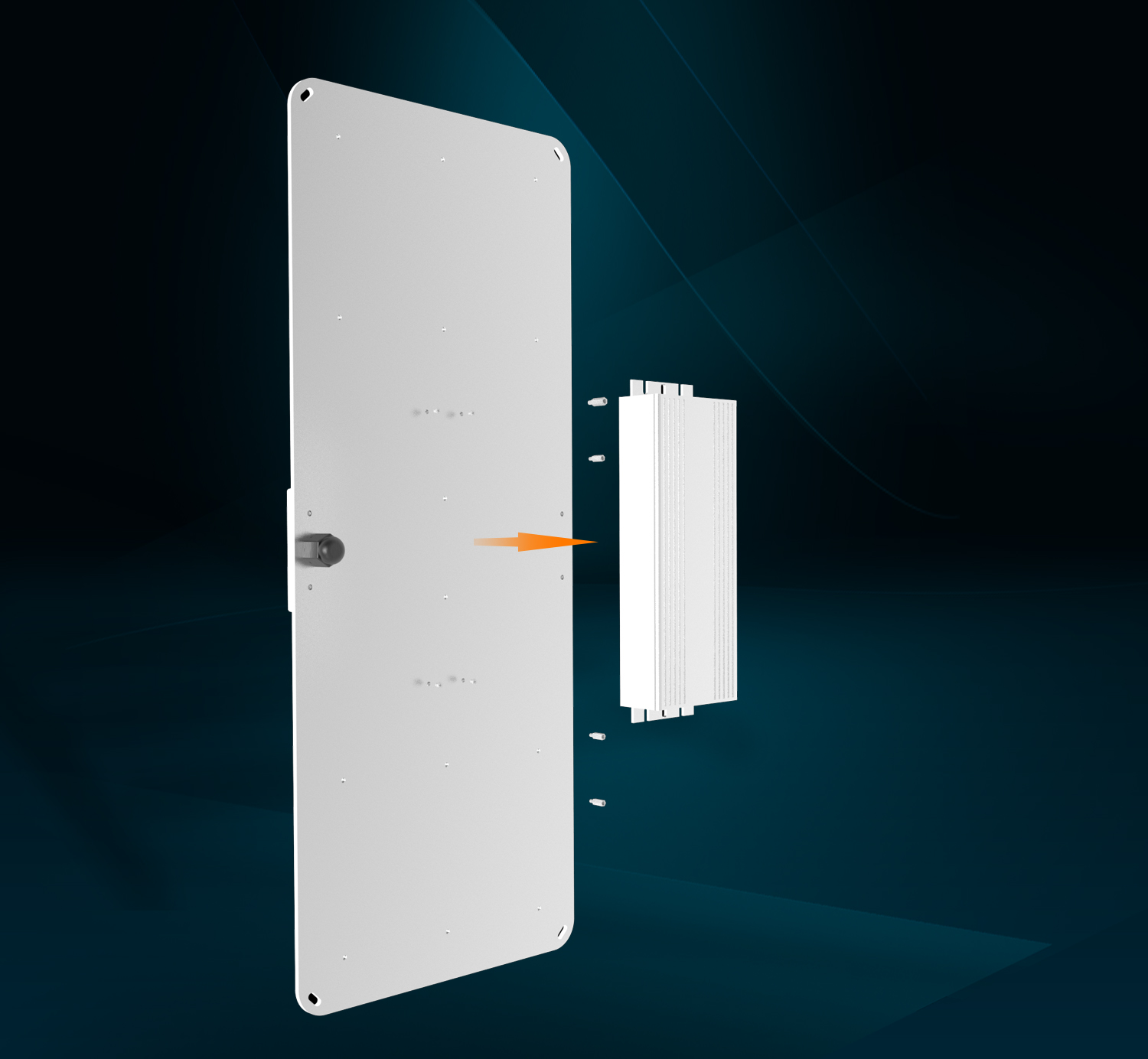

Waterproof Design

Suitable for most environments

Aero Aluminum

Superior heat dissipation

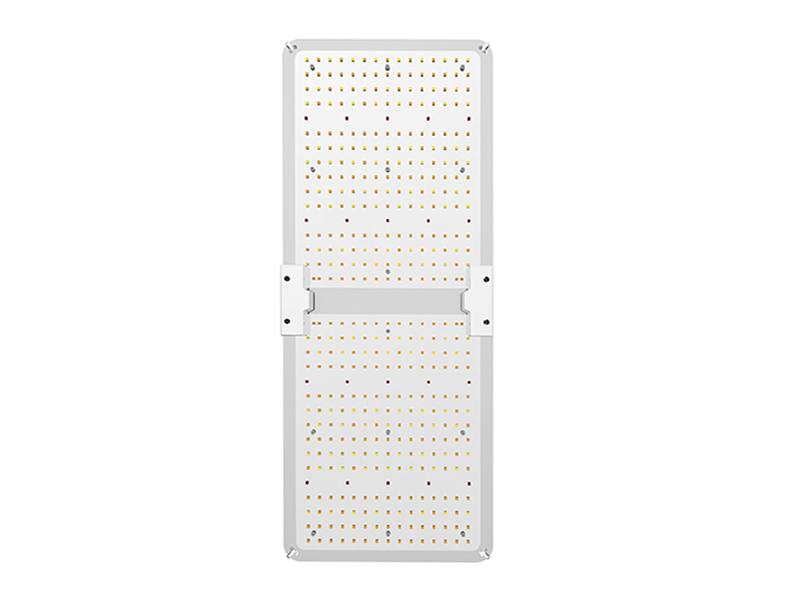

Board Design

Perfect size for tent

Product Video

200W Commercial LED Grow Light

Download Brochure

Features for Matrix200

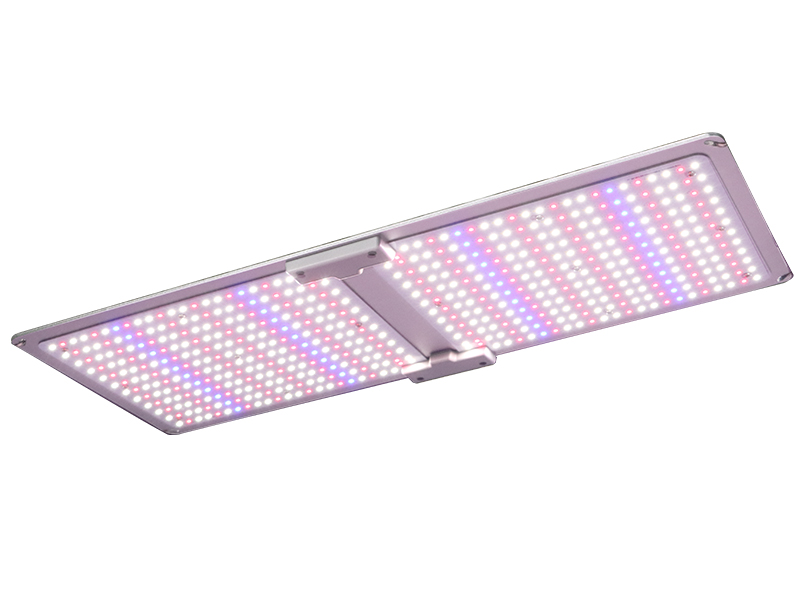

Matrix200 is a 200W full spectrum LED grow light designed for indoor plant cultivation.

Top Quality LED Chips:

Matrix 200 is built up with 576pcs OSRAM white LEDs and SANAN Red/Blue LEDs.

High Light Output:

The overall light output is up to 2.7 µmol/J and 1080µmol/s. This high efficiency of electricity to light not only saves your bill but increases your yield at the same time.

Full Spectrum for VEG & FLOWER:

The spectrum has been specially tuned with warm/cool white, 660nm deep red, and 450 deep blue. The overall balance is dedicated to optimizing the whole growth cycle of your plants, delivering strong vegetative growth and high-yield flowering.

0-100% Dimmable & Daisy Chain:

With the VD-100 dimming controller, up to 50 light fixtures can be controlled at the same time, as well as to set up the on/off timing, sunrise/sunset transition.

Perfect for Commercial and Home Grower:

The Matrix series LED grow lights are perfect for home growers using grow tents, such as 5ftx5ft, 4ftx4ft, 4ftx2ft, 3ftx3ft, 2ftx2ft. Easy to set up by universal hanging, then simply plug and play.

Free Shipping:

Free shipping applies to orders from the contiguous 48 states of the US, Canada, European countries, UK.




SPECS

Wattage Draw:

200 watts

LED Diodes:

576 pcs, Osram and Sanan

Spectrum:

Full-spectrum white with enhanced red blue

PPF (light output):

540 umol/s

PAR Efficacy:

2.7 umol/J

Coverage area(grow rooms and grow tents):

Flowering footprint: 0.6 x 1.2 m, 2 x 4 ft

Vegetative footprint: 0.6 x 1.2 m, 2 x 4 ft

Dimensions:

60 x 24 x 5.6 cm, 23.62 x 9.45 x 2.2 in

Maximum ambient operating temperature:

Up to 40° C

Product weight:

9.13 lbs (4.15 kg)

Lifetime:

≥50,000 hrs

Light Distribution:

120°

Working Temperature:

-20°C~ 40°C | -4°F~104°F

Dimming:

0-10V

Input Voltage\Frequency:

AC100-277V/47~63Hz

Power Factor:

220V≥0.95 | 110V≥0.98

Cooling:

Passive

Structure Material:

Aluminum

IP Rating:

IP65

Recommended for:

Home grows (grow rooms, grow tents)
Soil, hydroponic, aeroponic, or aquaponic systems
Indoor farming or gardening

Manufacturer's Warranty:

3 years

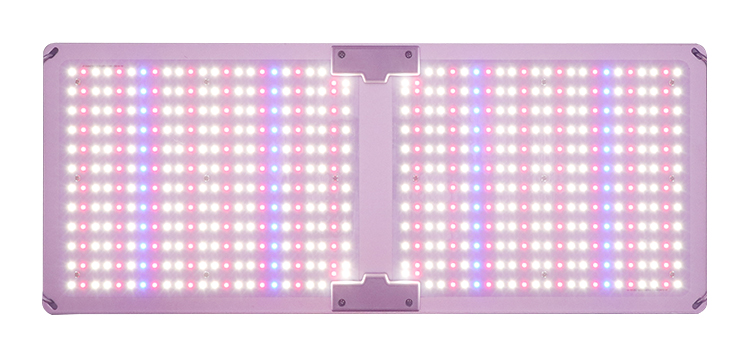

Features of Matrix 200 LED Grow Lights

576pcs High Efficacy OSRAM & SANAN LEDs



Warm white LED

Warm LED with a continuous spectral emission across PAR 400-700nm wavelength range with a high red ratio which is close to daylight of late Summer and Autumn. It is essential for balancing the full light spectrum for the whole growth cycle of plants, especially for the flowering stage.




Cool white LED

Cool LED with a continuous spectral emission across PAR 400-700nm wavelength range with a high blue ratio whic is close to daylight of Spring. It is essential for balancing the full light spectrum for the whole growth cycle of plants, especially for the vegetative stage.



450nm blue LED

Blue light can promote the rapid growth of plants with a strong stem and compact size during vegetative stages, being ready for flowering in the best condition.




660nm deep red LED


Red is the primary light spectrum used for photosynthetic. Red light promotes the increase in leaf area and is necessary during the flowering stage of plants.

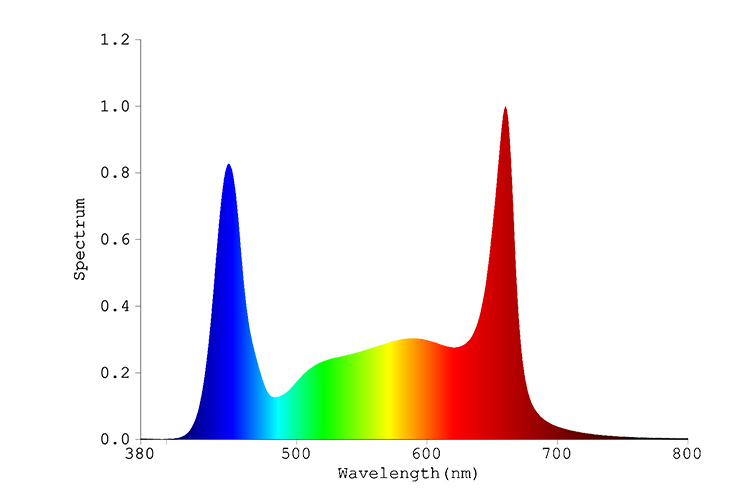

Full Spectrum for VEG & FLOWER


The spectrum has been specially tuned to meet the requirements of the whole growth cycle of flowering plants. Abalanced distribution of all wavebands within the 400-700nm PAR range delivers a robust and compact vegetative growth, as well as optimizes the flowering stage with high yield.

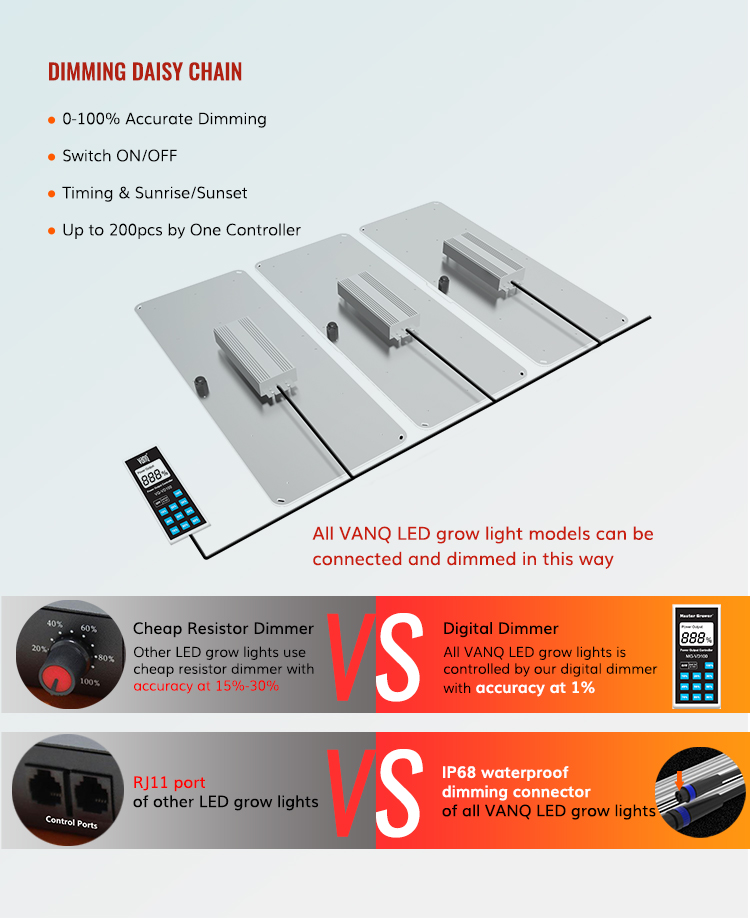

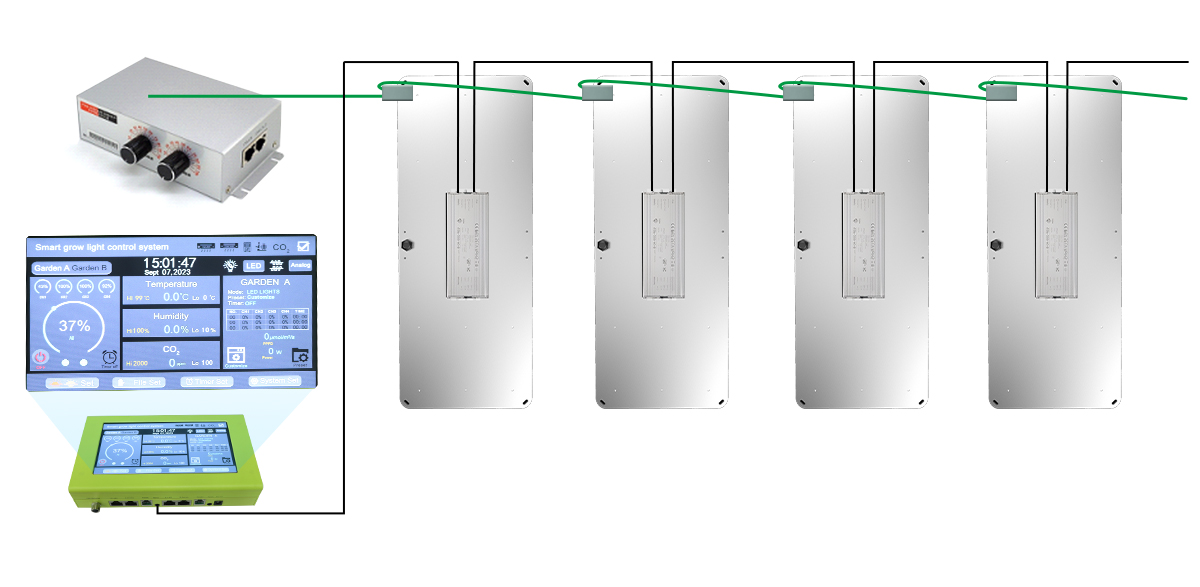

Daisy Chain


More about dimming controller


200英文详情页-3 (2).jpg

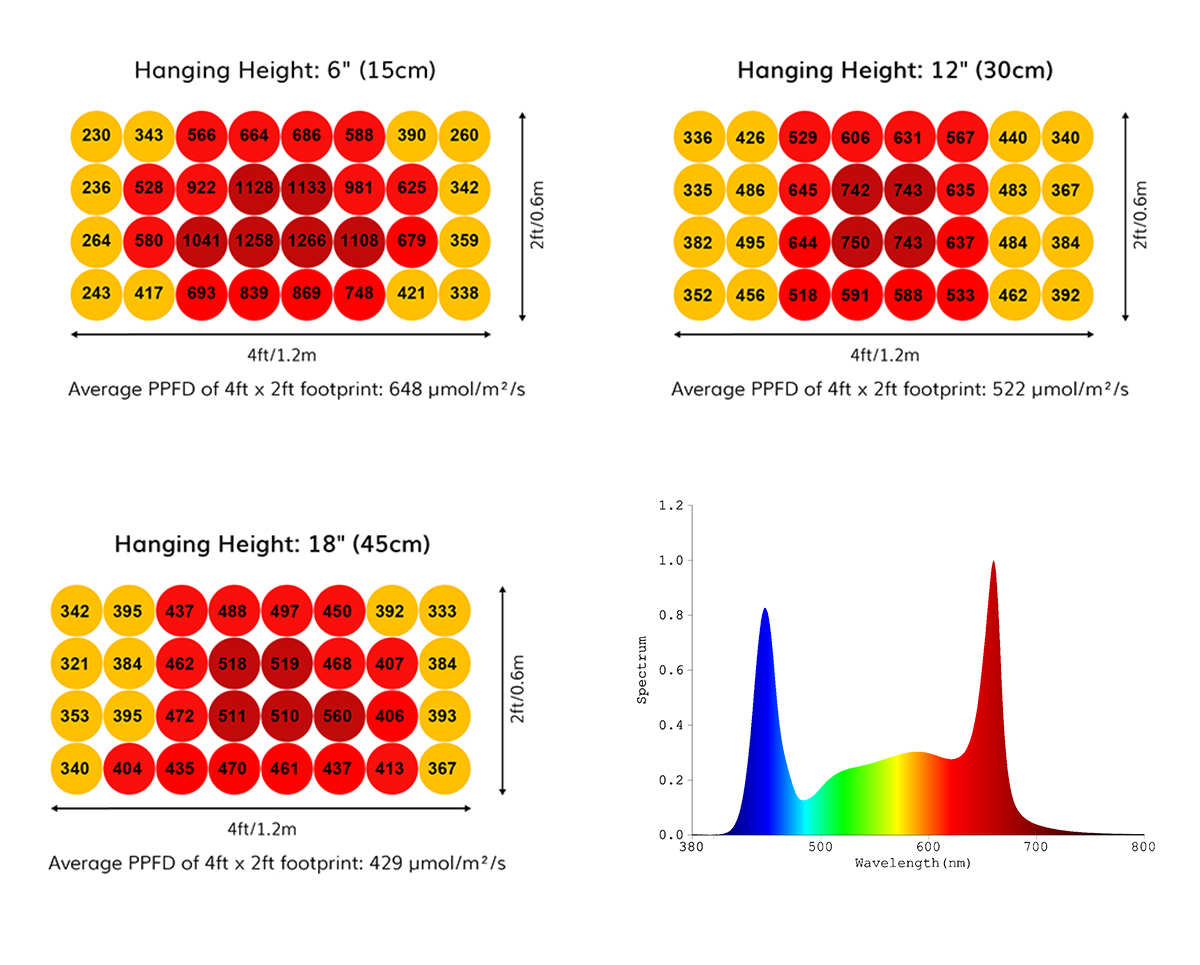

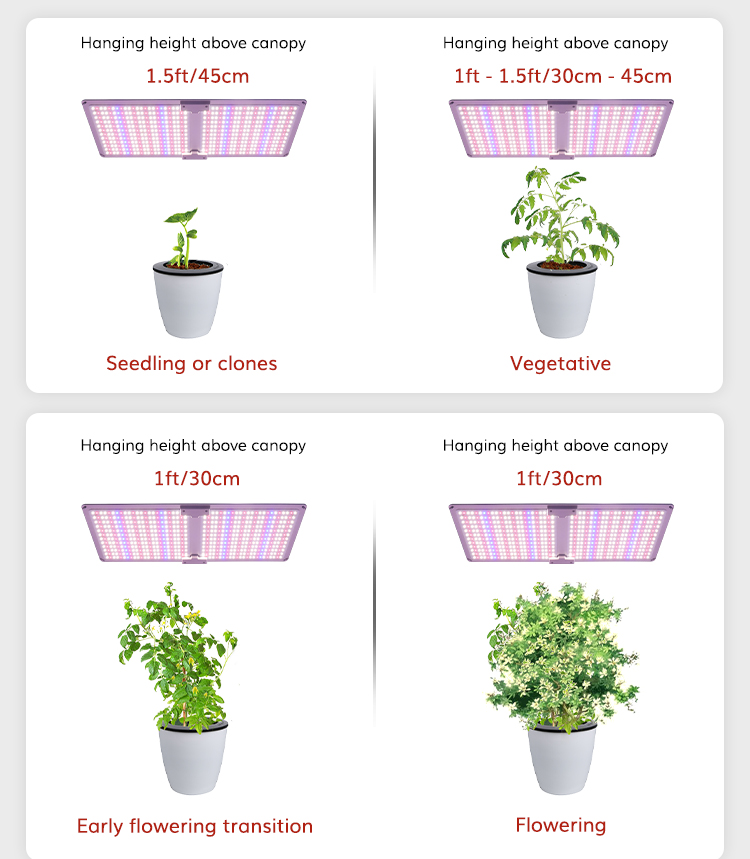

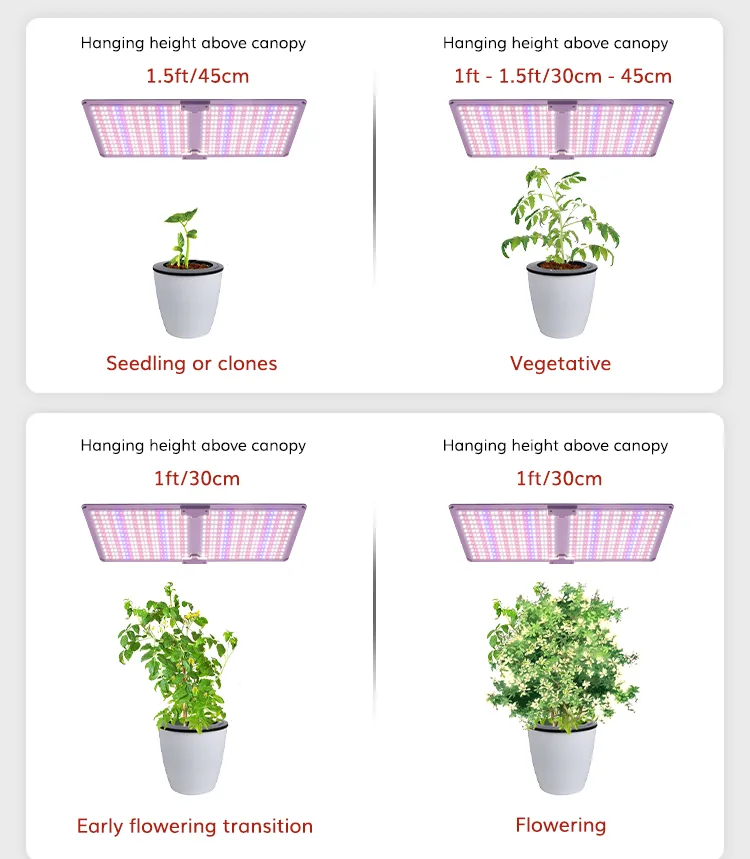

Hanging Heights At Different Growth Stages

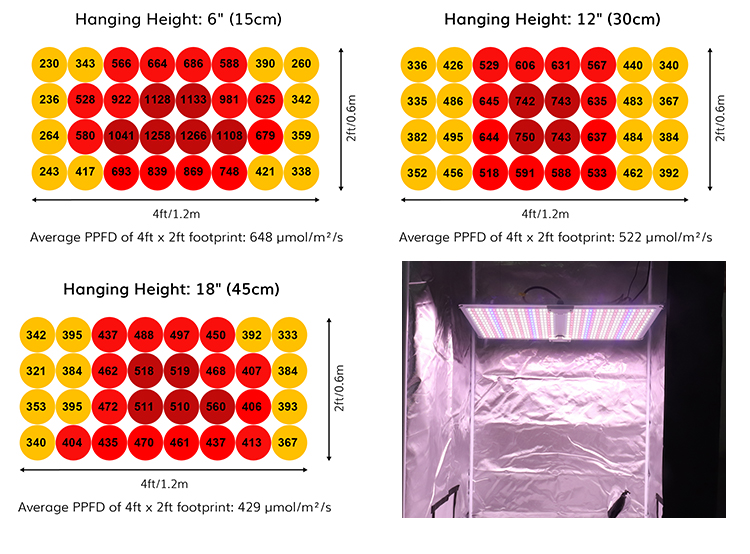

PPFD Distribution

- based on Matrix200

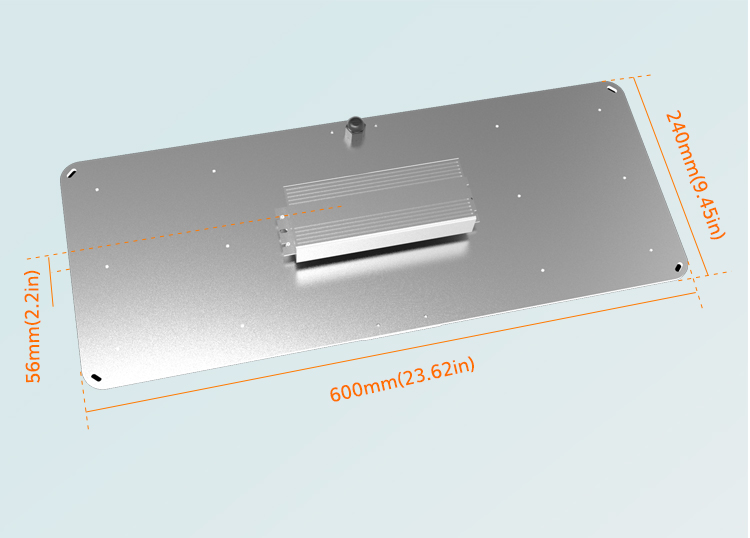

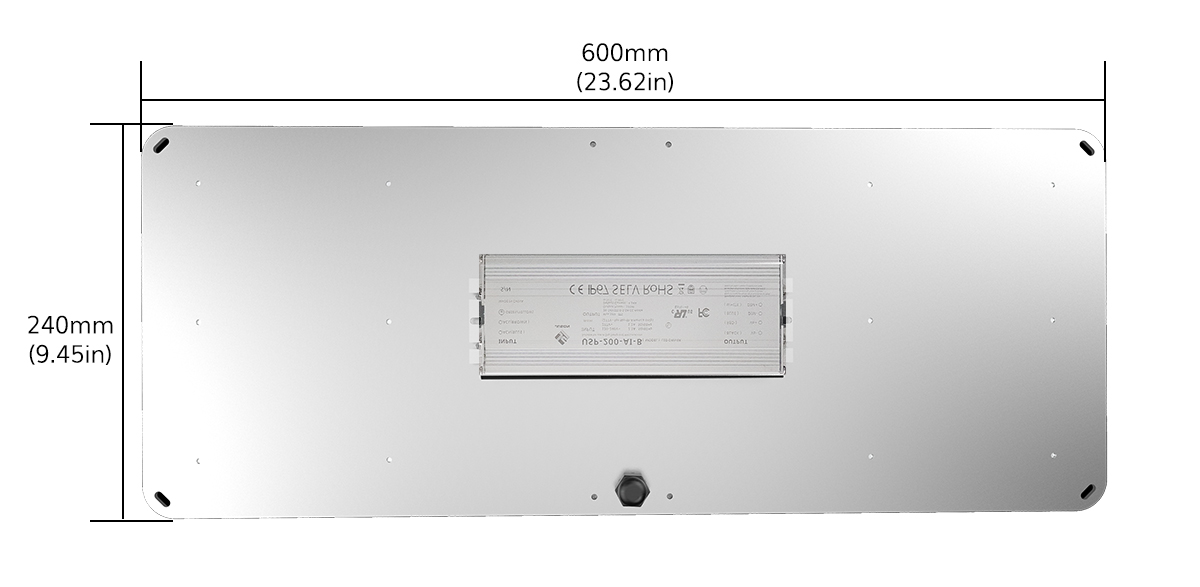

Dimensions

200英文详情页-3 (1).jpg

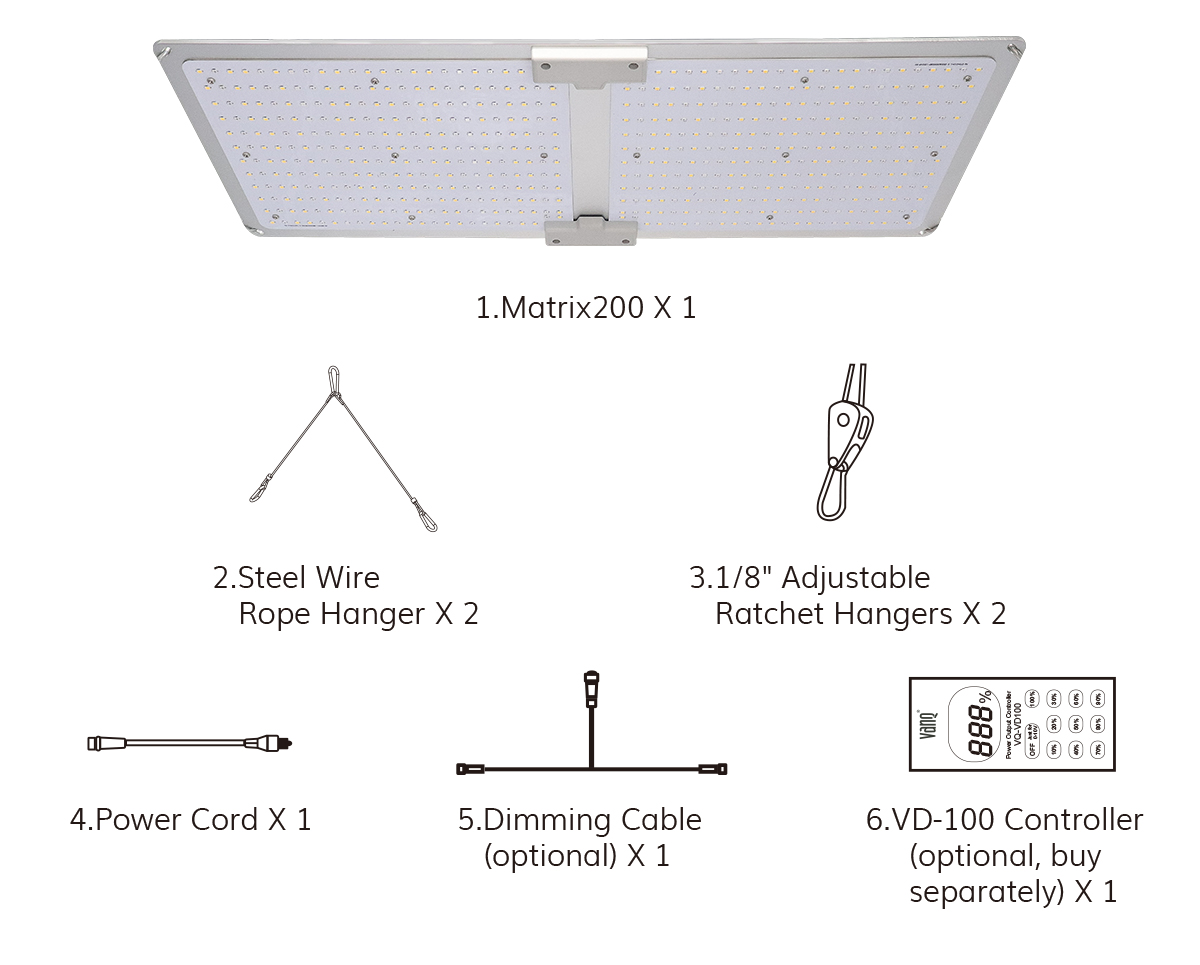

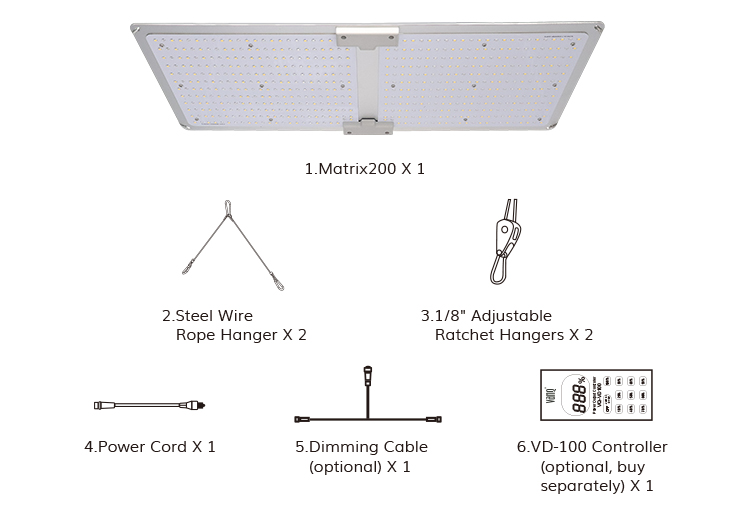

Packing List

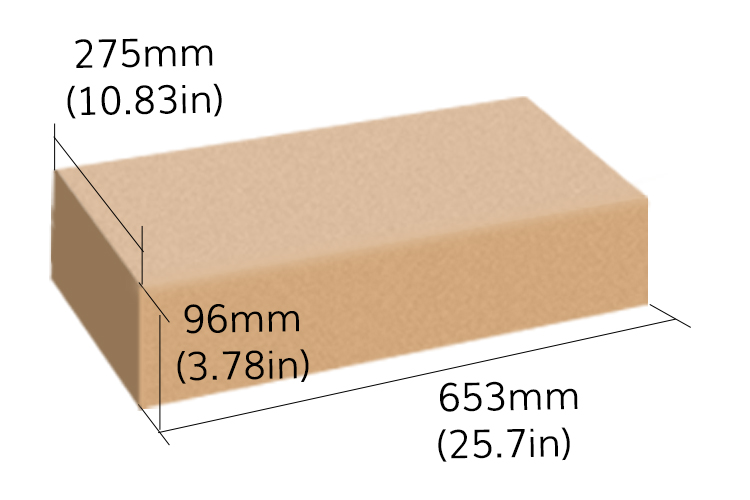

Packing Details





Packing Carton Model:

1 Unit/Carton

Carton Size:

25.7in L x 10.83in W x 3.78in D

653mm L x 275mm W x96mm H

Gross Weight:

4.85 KGs
