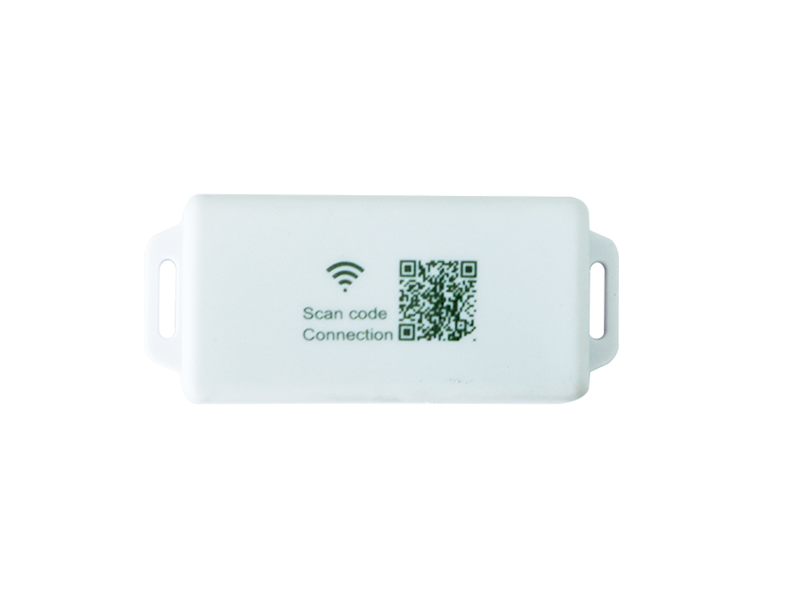

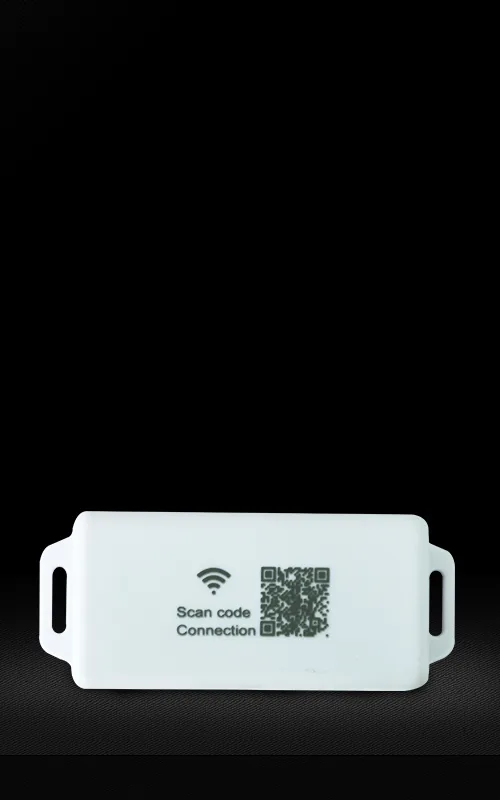

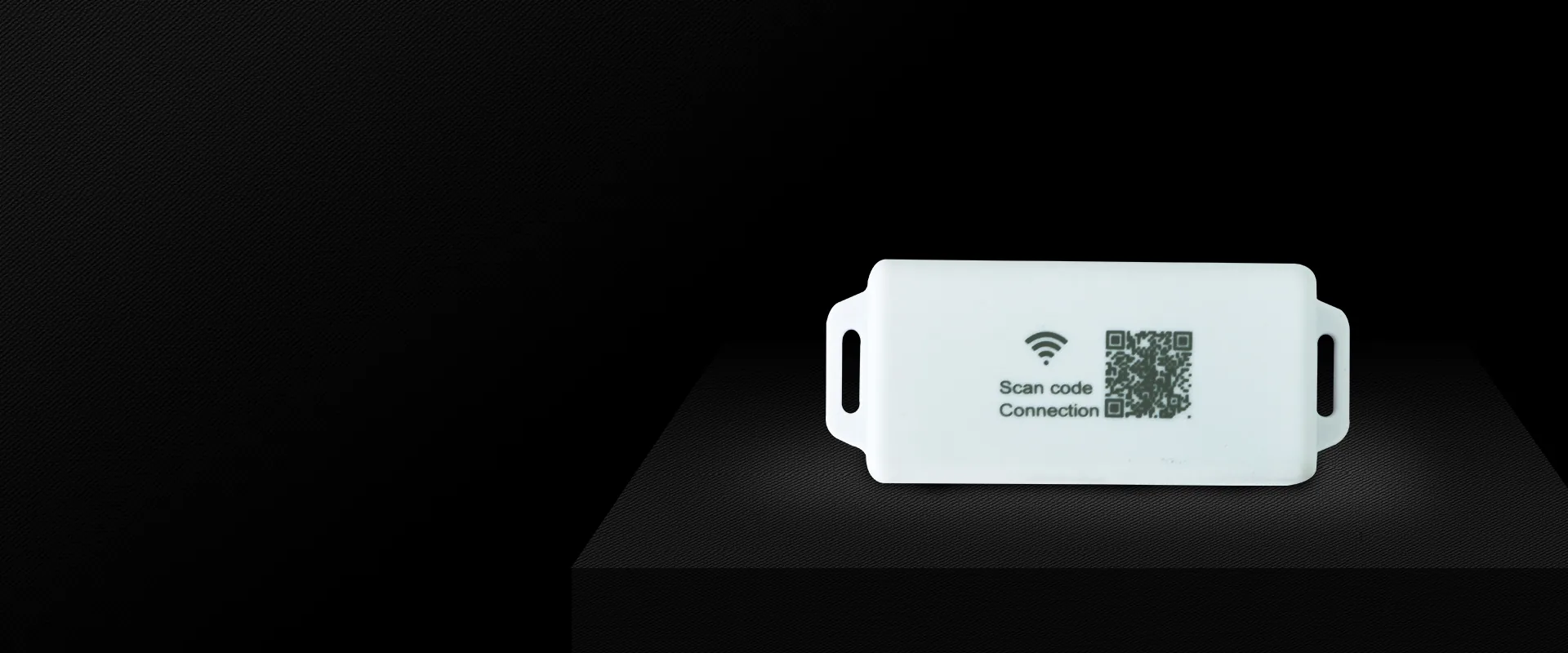

VQ-SA1B1 Bluetooth APP dimming controller |
1. Single-channel local wireless dimming controller, stable control distance of 30 meters by mobile phone. |
2. It can only be controlled by APP, and remote control requires a WIFI gateway. |
3. APP multi-stage timing dimming. |
Technical Specifications | |
Input: | 12V-200mA DC |
Output signal: | PWM |
Output channels: | 1-4 channels (optional) |
Signal output interface: | 2.54*3-7 |
Product dimensions: | 97mm*42mm*21mm |
Number of cascades: | 3000 |
Optional accessories: | gateway, timer |

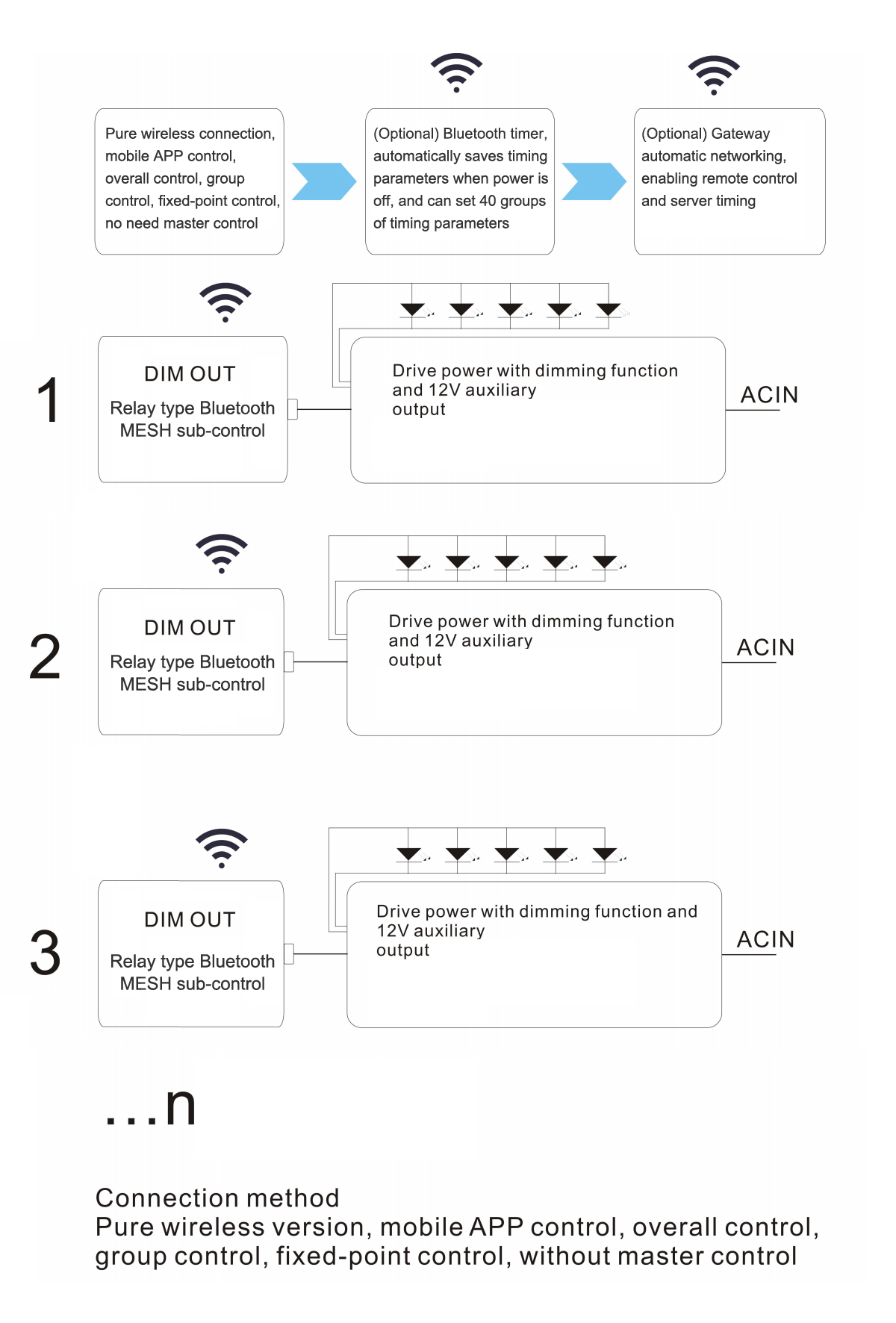

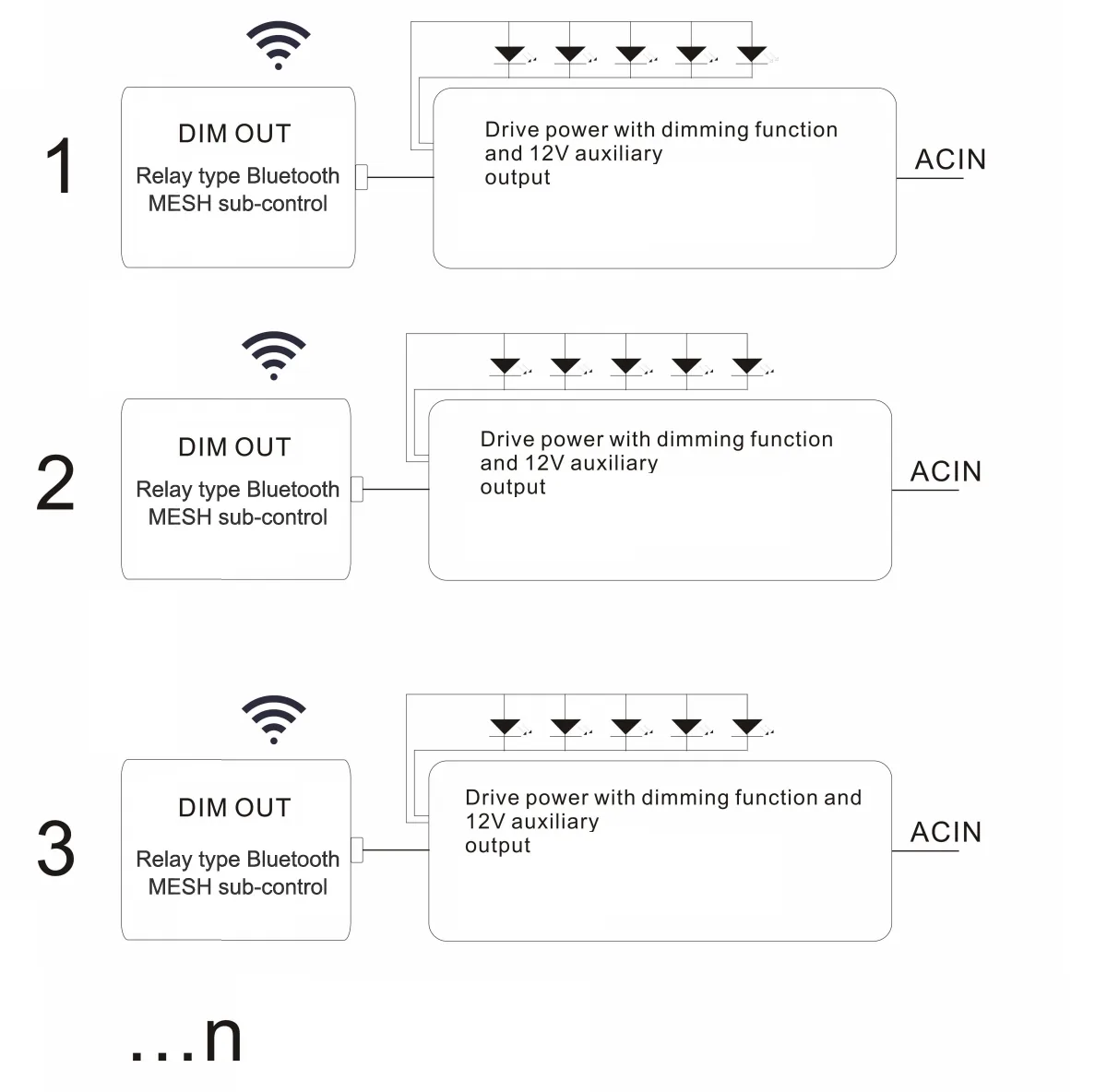

Product Connection Diagram |
Pure wireless connection, mobile APP control, overall control, group control, fixed-point control, no need master control |
(Optional) Bluetooth timer, automatically saves timing parameters when power is off, and can set 40 groups of timing parameters |
(Optional) Gateway automatic networking, enabling remote control and server timing |
Relay type Bluetooth MESH sub-control |
