20W T8 LED Grow Tube light

GLT8I20 20W Led tube light is the ideal LED grow light for replacement of traditional fluorescent grow light tube in horticulture applications

Samsung LM301B

Original Top Bin Led Chip

Multiple installations

Easy Maintanance & Replacement

Customized Spectrum

CN3/VN3/TN3 For Diffirent Purpose

Daisy Chain

Up to 20 PCS

Anti-fire materia

High quality Ensure Safety

Optional Length

Cusomizable Based On Project

Product Video

20W LED Tube Grow Light

Download Brochure

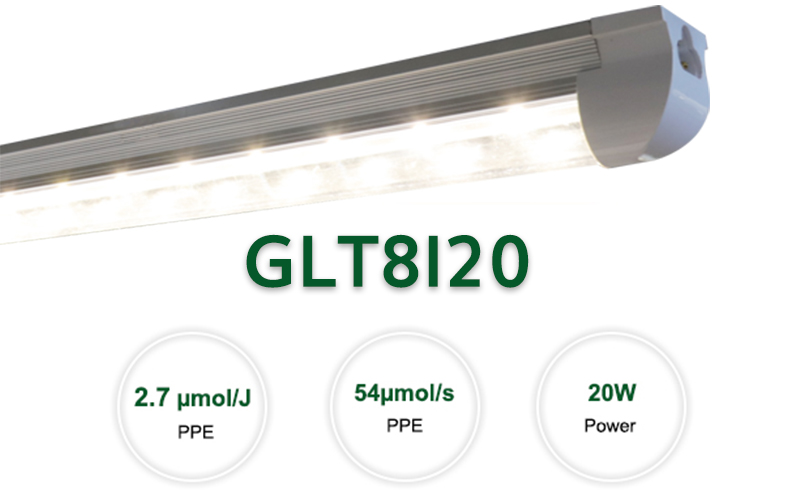

GLT8I20 Parameter




GLT8I20

GLT8I10

Power Consumption (max)

20W±15%10W±15%

Dimensions

47.2in Lx 1.65in W x 2.6in D

1198mm Lx 42mm w x 67mm D

23.6in L x 1.22in W x 1.38in D

600mm L x 31mm W x 35mm D

Weight

300g / 0.66 lbs185g / 0.4 lbs

Typical PPF

54 umol/s (spectrum dependent)27 umol/s (spectrum dependent)

Efficacy

2.7 umol/J (spectrum dependent)2.7 umol/J (spectrum dependent)

lnput Voltage/Frequency

AC100~240V/47~63HzAC100~240V/47~63Hz

Spectrum

VC3/CN3/VN3/TN3VC3/CN3/VN3/TN3

Power Factor

220V≥0.95 | 110V≥0.98220V≥0.95 | 110V≥0.98

Cooling

PassivePassive

Structure Material

AluminumAluminum

Working Temperature

-20°C~ 40°C |-4°F~104°F-20°C~ 40°C |-4°F~104°F

Light Distribution

120°120°

Daisy Chain(Max)

20pcs20pcs

Lifetime

L90≥50,000 hrsL90≥50,000 hrs

IP Rating

IP43IP43

Warranty

1 Years1 Years




Lamp size






Less Power & More Growth







Light spectrums



CN3 is a tailor-made heavy blue spectrum with a

continuous spectral emission across PAR 400

- 700nm wavelength range.




VC3 spectrum focuses on vegetative growth phases and propagation.


Allow to customize different light spectrums for application

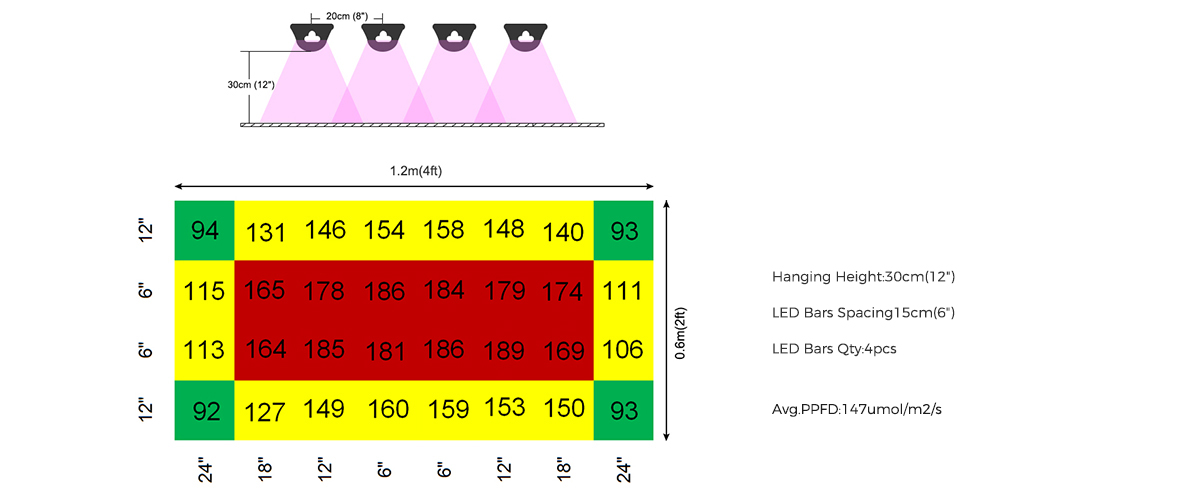

Uniform Light Distribution

PPFD data reference by 4bars 20w grow lights by size of 2ft *4ft at height of 12inch/30cm.

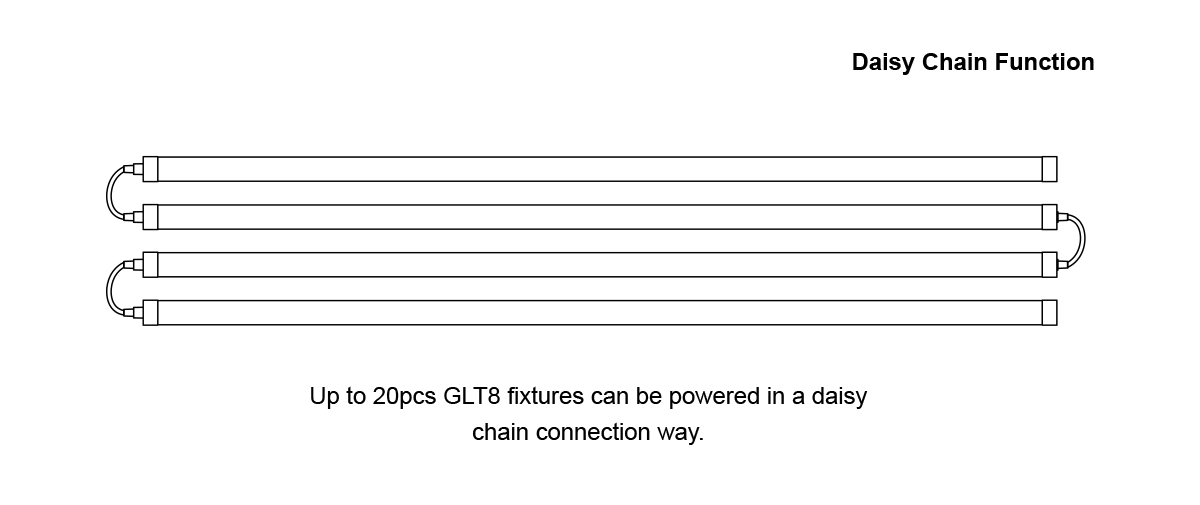

Daisy Chain

Up to 20 units of GLT8I20 can be powered together in a daisy chain connection.



Packing Details




Net Weight:7.8kg | 17.2lbs
Packaging:25 pcs/carton
Gross Weight:10kg | 22 lbs
Size:

142cm L x 25.5cm W x 26cm H

56inch L x 10inch W x 10.2inch H

Packaging Material:Plastic + Foam + Carton
